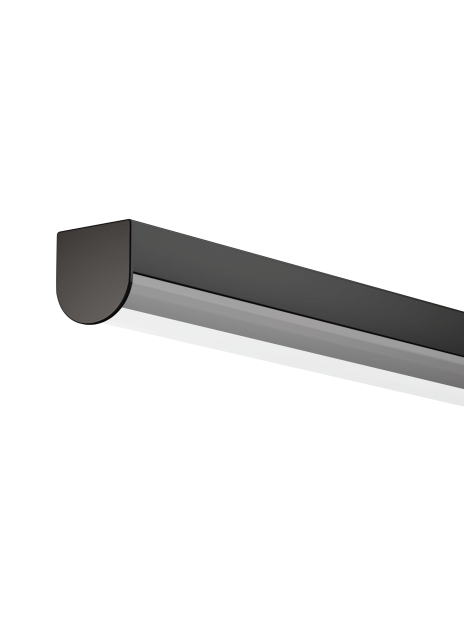

SURFACE 0809 GRAZER
ESSENSE Surface Mount Grazer beautifully illuminates the architectural details on walls highlighting texture and shadow and creating visual interest.
-
Clean Aesthetic with Minimal Shadowing
- Fixed and magnetic mounting hardware is fully concealed when installed
- Tight LED pitch (static white. 72 LEDs/ft. warm dim. 52 LEDs/ft) for uniform illumination
- Concealed joiner allows individual segments to be joined with minimal shadowing Ease of Specifying and Installation
- Available in factory assembled and field assembled options
- Fixtures available in 1-inch increments up to 50 ft. length includes end caps
- Fixtures longer than 8 ft contain multiple equal length segments that are joined in the field
- Three mounting options. Fixed, Magnetic, and Adjustable. Fixed mounting includes 3M™ Tape and easy snap-in mechanical mounting clips for ceiling and wall mount. Magnetic mounting allows for tool-less installation to metal surfaces. Adjustable mounting clips enable the fixture to be locked into any angle between 0° and 90° Application Versatility
- Standard reverse-phase, forward-phase, and TRIAC dimming down to 1%, Lutron Hi-lume EcoSystem down to 0.1%, Standard 0-10V down to 5%, and eldoLED 0-10V down to 0.1%
- Registered CEC appliance database. complies with CEC 2019 Title 24 Part 6
- ETL listed Class 2, Damp location. approved for use in closets and storage spaces per NEC Article 410.16
