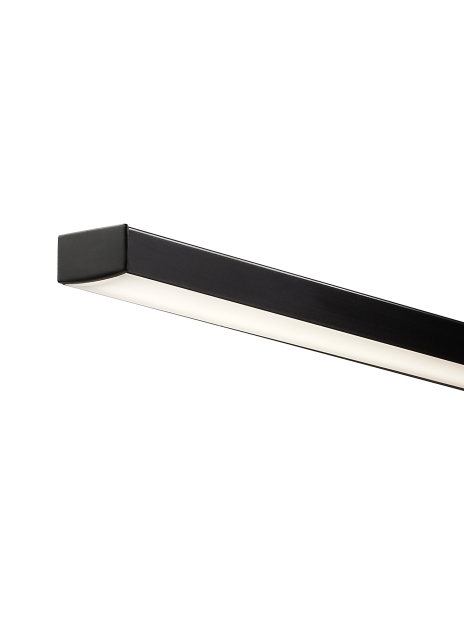

SURFACE 0604
The ESSENCE Surface Mount 0604 features an ultra-shallow profile for a minimal
appearance. Highlight your space over or under cabinets and countertops or use it
as perimeter lighting. Perfect for spaces where a slim profile is desired.
-
Clean Aesthetic with Minimal Shadowing
- Fixed and magnetic mounting hardware options are fully concealed when installed
- Tight LED pitch (Static White. 72 LEDs/ft. Warm Dim. 52 LEDs/ft) for uniform illumination.
- Black and White Lenses eliminates pixilation for Static White
- Concealed joiner allows individual segments to be joined with minimal shadowing (field assembled runs over 8ft) Ease of Specifying and Installation
- Fixtures are available in various increments up to 8 ft (factory assembled) and up to 50 ft (field assembled), length includes end caps
- Three mounting options. Fixed, Magnetic, and Adjustable. Fixed mounting includes 3M™ Tape and easy snap-in mechanical mounting clips for ceiling and wall mount. Magnetic mounting allows for tool-less installation to metal surfaces. Adjustable mounting clips enable the fixture to be locked into any angle between 0° and 90° Application Versatility
- Standard reverse-phase, forward-phase, and TRIAC dimming down to 1%, Lutron Hi-lume EcoSystem down to 0.1%, Standard 0-10V down to 5%, and eldoLED 0-10V down to 0.1%
- Registered CEC appliance database. complies with CEC 2019 Title 24 Part 6
- ETL listed Class 2, Damp location. approved for use in closets and storage spaces per NEC Article 410.16
Includes 95+ CRI LED tape and available in 2400K, 2700K, 3000K, 3500K, 4200K Static White and 3000K-1800K Warm Dim.
