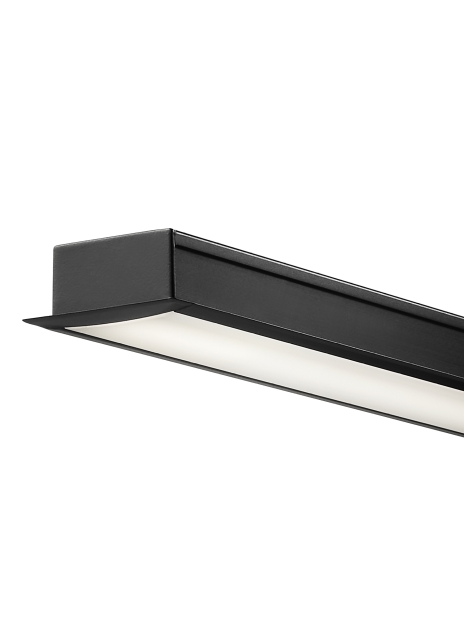

RECESSED FLANGED 1206
ESSENCE Recessed Flanged 1206 offers excellent illumination in a stylish, modern
profile. Customizable lengths, lenses, finishes, and color temperatures allow you to
craft illumination that will elevate the design of any space.
-
Clean Aesthetic with Minimal Shadowing
- Concealed mounting hardware, minimal end cap thickness (0.04” thick)
- Tight LED pitch (Static White. 72 LEDs/ft. Warm Dim. 52 LEDs/ft). White Lens eliminates pixilation for Static White
- Concealed joiner allows individual segments to be joined with minimal shadowing Ease of Specifying and Installation
- Fixtures available in 1-inch increments up to 50 ft, length includes flange
- Fixtures longer than 8 ft contain multiple equal length segments that are joined in the field
- Includes mechanical mounting clips for ceiling and wall mount Application Versatility
- Standard reverse-phase, forward-phase, and TRIAC dimming down to 0.2%, Lutron Hi-lume Ecosystem down to 0.1%, Standard 0-10V down to 5%, and eldoLED 0-10V down to 0.1%
- Registered CEC appliance database. Can be used to comply with CEC 2019 title 24 part 6
- ETL listed Class 2, Damp listed.
Includes 95+ CRI LED tape and available in 2400K, 2700K, 3000K, 3500K, 4200K Static White and 3000K-1800K Warm Dim.
