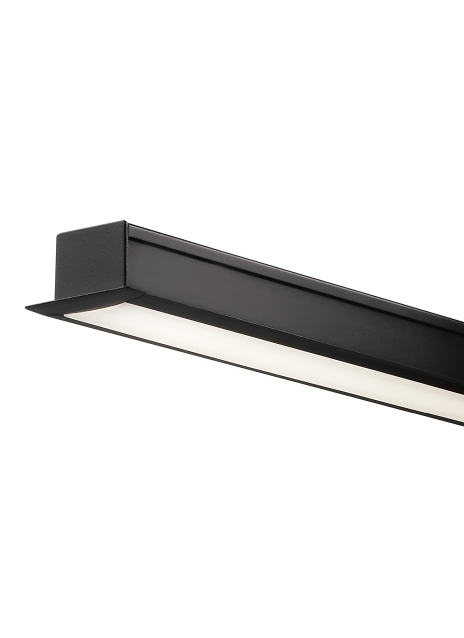

Recessed Flanged 0606 Details

Black Shown On

Available Options

#techlighting_official

ESSENCE Recessed Flanged 0606 architectural light channels evoke a modern aesthetic with a low-profile channel that integrates effortlessly into drywall or millwork, complimenting the space while delivering visual comfort.

Premium Color Quality and Consistency

U-Series Static White. 1-step color consistency, CRI 97+, R9 95+, Rf 95+, Rg 100
P-Series Static White. 2-step color consistency, CRI 95+, R9 90+, Rf 90+, Rg 95-105
Warm Dim. 2-step color consistency, CRI 95+, R9 90+, Rf 90+, Rg 95

Clean Aesthetic with Minimal Shadowing

Concealed mounting hardware, minimal end cap thickness (0.04” thick)
Tight LED pitch (Static White. 72 LEDs/ft. Warm Dim. 52 LEDs/ft). White Lens eliminates pixilation for Static White
Concealed joiner allows individual segments to be joined with minimal shadowing

Ease of Specifying and Installation

Factory Assembled and Field Assembled options available
Fixtures available in 1-inch increments up to 50 ft, length includes flange
Fixtures longer than 8 ft contain multiple equal length segments that are joined in the field
Includes mechanical Mounting Clips for ceiling and wall mount

Application Versatility

Standard phase dimming down to 0.2% and Lutron Hi-lume Ecosystem down to 0.1% and eldoLED 0-10V down to 0.1%
Registered CEC appliance database. Can be used to comply with CEC 2019 title 24 part 6
ETL listed Class 2, Damp listed. approved for use in closets and storage spaces per NEC Article 410.16
