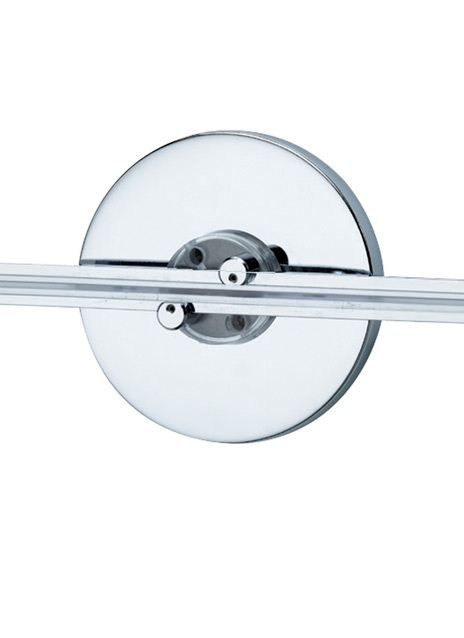

Wall MonoRail 4" Round Direct Canopy Single-Feed With LED Transformer
Product Features
Lamping
It can power lamps totaling up to 60 watts. The transformer, concealed by a decorative canopy, fits in junction box and features a fast acting secondary circuit breaker that will safely turn the system off should a short occur. Once the short has been removed the unit can be reset by simply flipping the wall switch off and back on.
Ordering Information
| 700WMOP4R60E | Shape or Size | Finish | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
As a general rule when using LED fixtures we do not recommend using greater than 70% of specified maximum wattage on the transformer due to inrush current. for assistance, please contact our technical support department.
700WMOP4R60E
Job Name
Notes
Wall MonoRail 4" Round Direct Canopy Single-Feed With LED Transformer
Specifications
| Primary Material | |
| Shade Material | |
| Net Weight | 0.95 lbs |
| Height | 4in |
| Width | 2in |
| Length | 2in |
| Wet Listed | |
| Damp Listed | |
| Dry Listed | |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | ||||
| Watts | ||||
| Max Wattage Per Bulb | 60W | |||
| Input Voltage/ Dimming Type | ||||
| CCT | ||||
| CRI | ||||
| LED Lifetime | ||||
| L70 | ||||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | ||||
| Lamp Shape | ||||
| Lamp Included? | ||||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | N/A | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | Yes |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
