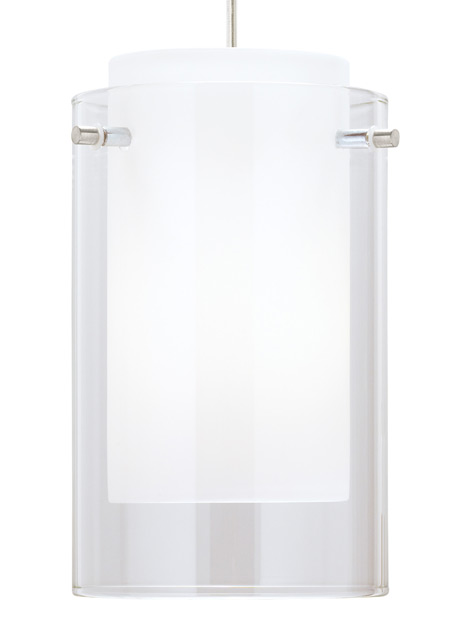

Echo Large Pendant
Product Features
- From the brand formerly known as Tech Lighting
- Multiple color options provide style to your space
- Perfect for creating custom chandeliers popular in today’s interior design trends
- Complementary Mini Echo, Echo Grande and Echo wall sconce light also available from Tech Lighting
- Fully dimmable LED lamping option creates the desired ambiance in your unique space
- Ships with 6 feet of field-cuttable cord for optimal length customization
Lamping
Rated for (1) 75 watt, E26 medium base (lamp not included). LED A19 9.5w, 707 delivered lumens, 90 CRI 2700K. Fixture is provided with six feet of field-cuttable cable. Dimmable with most LED compatible ELV and TRIAC dimmers.
Ordering Information
| 700 | System ECP | Shape or Size | Color | Finish | Lamp | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
700
Job Name
Notes
ECP
Echo Large Pendant
Specifications
| Primary Material | Glass |
| Shade Material | Glass |
| Net Weight | 3 lbs |
| Height | 9in |
| Width | 5in |
| Length | 5in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 15.5in |
| Max Hanging height | 81.5in |
| Total Cord Length | 72in |
| Total Stem Length | |
| Stem Qty | |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 707 | |||
| Watts | 9.5 | |||
| Max Wattage Per Bulb | 75W | 75W | ||
| Input Voltage/ Dimming Type | 120V ELV, TRIAC | 120V ELV, TRIAC | ||
| CCT | 2700K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >25000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | E26 Medium Base | E26 Medium Base | ||
| Lamp Shape | A19 | A19 | ||
| Lamp Included? | True | False | ||
| Warranty** | 1 Year | 1 Year |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | N/A | |
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | Yes | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
