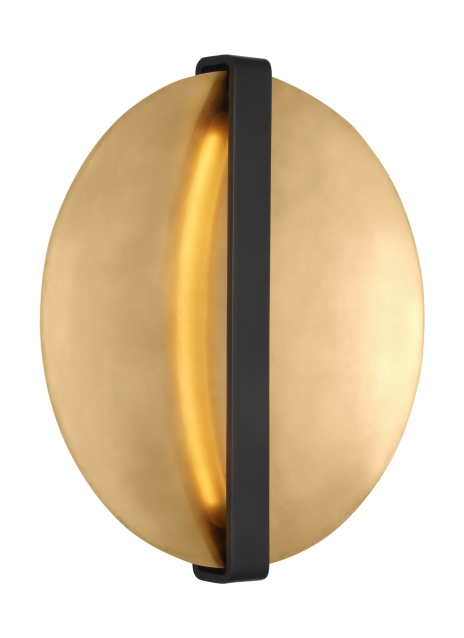

Cymbal Large Sconce
Product Features
- From traditional to modern interiors the Cymbol family brings timeless style and materials that compliment without overpowering.
- The armatures play the structural role in the system, giving Cymbal an architectural grounded character while providing a conduit for the completely hidden LED sources.
- This item is made of natural brass. It is a living finish that will patina and warm with age which adds richness. If it gets an uneven patina or spots, a brass cleaner can restore the finish
- Fully dimmable integrated LED lamp
- Modern finishes available
Lamping
Includes 11.4 watt, 236 delivered lumens, 2700K LED module. Dimmable with most LED compatible ELV, TRIAC and 0-10V dimmers. Can be mounted vertically or horizontally. 120V-277V.
Ordering Information
| PBWS353 | Color Temp | Finish | ||||||
|---|---|---|---|---|---|---|---|---|
|
|
PBWS353
Job Name
Notes
Cymbal Large Sconce
Specifications
| Primary Material | Brass |
| Shade Material | Brass |
| Net Weight | 9 lbs |
| Height | 21.2in |
| Width | 3.2in |
| Length | 19.8in |
| Min. Extension From Wall | 3.2in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Up / Down | |
| Horizontal / Vertical | |
| Wall / Ceiling Mount | |
| General Listing | ETL Listed |
| Ada Compliant | |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 236 | |||
| Watts | 11.4 | |||
| Max Wattage Per Bulb | 11.4W | |||
| Input Voltage/ Dimming Type | Universal 120V-277V 0-10, ELV, TRIAC | |||
| CCT | 2700K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | No | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
