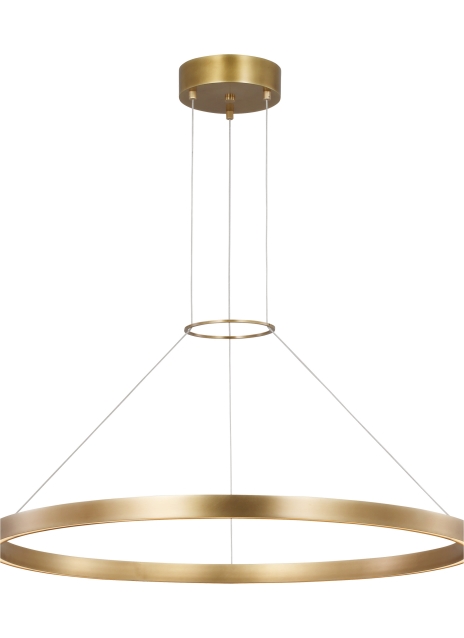

Fiama 36 Suspension
Product Features
- Large transitional design style yet modern
- Simple slender ring that adds a minimalist chic feel to any space
- Ideal for dining room lighting, foyer lighting and commercial
- Ships with an energy efficient integrated LED lamp
- Fully dimmable integrated LEDs illuminate up and down to create the desired ambiance
Lamping
Includes 97.5 watt, 5519 delivered lumens, 3000K LED module. Dimmable with most LED compatible ELV, TRIAC and 0-10V dimmers. Fixture provided with twelve feet of field-cuttable cable. 120V-277V.
Ordering Information
| SLCH149 | Color Temp | Finish | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SLCH149
Job Name
Notes
Fiama 36 Suspension
Specifications
| Primary Material | Aluminum |
| Shade Material | Aluminum |
| Net Weight | 10 lbs |
| Height | 1.5in |
| Width | 36in |
| Length | 36in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 16in |
| Max Hanging height | 144in |
| Total Cord Length | 144in |
| Total Stem Length | |
| Stem Qty | |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 5519 | |||
| Watts | 97.5 | |||
| Max Wattage Per Bulb | 97.5W | |||
| Input Voltage/ Dimming Type | Universal 120V-277V 0-10, ELV, TRIAC | |||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
