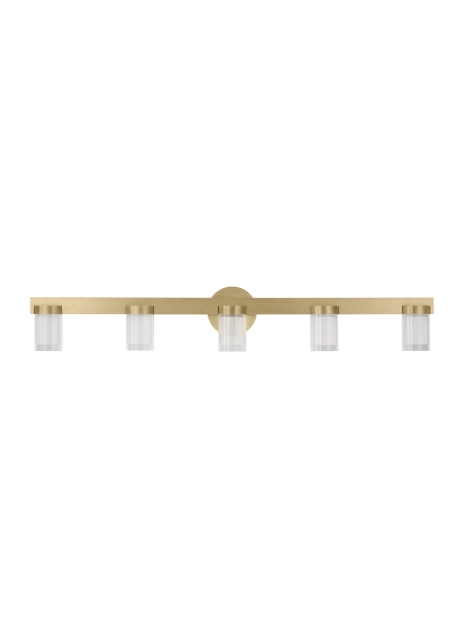

Esfera Large Bath
Product Features
- Laser etched crystal captures the light
- This item is made of natural brass. It is a living finish that will patina and warm with age which adds richness. If it gets an uneven patina or spots, a brass cleaner can restore the finish
- Fully dimmable integrated LED lamp
- Handsome and bold design. ADA compliant
- Features die-cast metal detailing for a sophisticated appeal
- The LED Driver is housed within the junction box. (L. 3.03" | W. 1.5" | H. 1.1")
Lamping
Includes 35.8 watt, 3142 delivered lumens, 2700K LED module. Dimmable with most LED compatible ELV, TRIAC and 0-10V dimmers. Mounts horizontal only. Up or downlight. 120V-277V.
To view all available finish options, please visit techlighting.com
Ordering Information
| KWBA276 | Color Temp | Finish | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
KWBA276
Job Name
Notes
Esfera Large Bath
Specifications
| Primary Material | Steel Or Brass |
| Shade Material | Crystal |
| Net Weight | 12 lbs |
| Height | 5.9in |
| Width | 3.4in |
| Length | 36in |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 3142 | |||
| Watts | 35.8 | |||
| Max Wattage Per Bulb | 35.8W | |||
| Input Voltage/ Dimming Type | Universal 120V-277V 0-10, ELV, TRIAC | |||
| CCT | 2700K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
