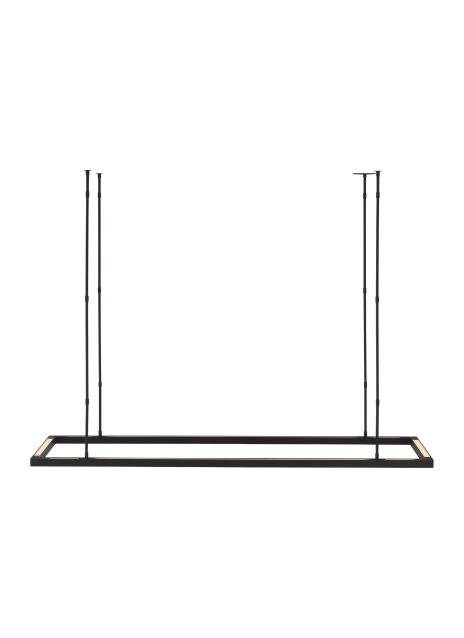

Stagger Halo 50 Uplight Linear Suspension
Product Features
- Creates a visual canopy and brings human scale to spaces with taller ceilings
- This item is made of natural brass. It is a living finish that will patina and warm with age which adds richness. If it gets an uneven patina or spots, a brass cleaner can restore the finish
- Includes (8) 6" and (16) 12" rigid stems in coordinating finish.
- Complementary wall sconce light and additional pendant sizes available
Lamping
Includes 50 watts, 3750 delivered lumens, 2700K LED module. Dimmable with most LED compatible ELV, TRIAC and 0-10V dimmers. Ships with (16) 12" and (8) 6" rigid stems in coordinating finish. 120V-277V. Uplight only.
To view all available finish options, please visit techlighting.com
Ordering Information
| MDLS187 | Color Temp | Finish | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
MDLS187
Job Name
Notes
Stagger Halo 50 Uplight Linear Suspension
Specifications
| Primary Material | Aluminum, Stainless Steel or Brass |
| Shade Material | Acrylic |
| Net Weight | 25 lbs |
| Height | 1in |
| Width | 18in |
| Length | 49.5in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 4.3in |
| Max Hanging height | 64.3in |
| Total Cord Length | |
| Total Stem Length | Up to 240in |
| Stem Qty | 24 |
| Sloped Ceiling Adaptable? | No |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 3750 | |||
| Watts | 50 | |||
| Max Wattage Per Bulb | 50W | |||
| Input Voltage/ Dimming Type | Universal 120V-277V ELV, TRIAC | |||
| CCT | 2700K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
