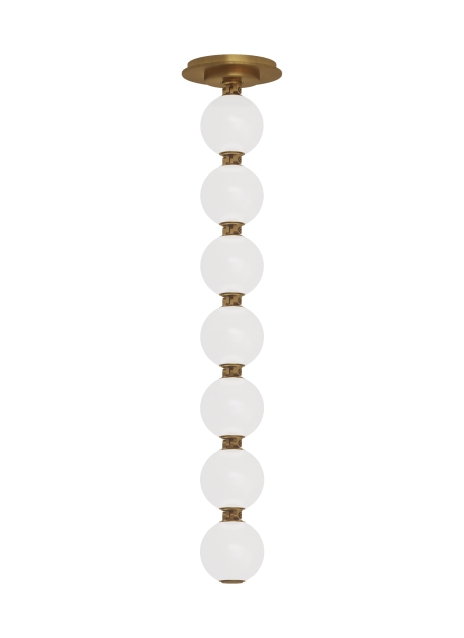

Perle 24 Pendant
Product Features
- From the brand formerly known as Tech Lighting
- Hand-blown glass manufactured in Italy
- This item is made of natural brass. It is a living finish that will patina and warm with age which adds richness. If it gets an uneven patina or spots, a brass cleaner can restore the finish
- Remote and surface mount driver options available. An optional mud-in canopy kit can be ordered separately in conjunction with the ‘Remote’ driver option for the most minimal ceiling appearance
- Contact factory for custom configurations
- The LED Driver is housed within the junction box. (L. 2.68" | W. 1.57" | H. 0.87")
Lamping
Includes 10.3 watt, 501 total delivered lumens, 90 CRI 2700K or 3000K LED modules. Remote dimmable with most LED compatible ELV and TRIAC dimmers. 277V dimmable with 0-10V dimmers. Surface dimmable with ELV, TRIAC and 0-10V dimmers. Remote 120V or 277V. Surface 120V-277V. Can be installed on a sloped ceiling up to 45°.
Ordering Information
| SLPD226 | Color Temp | Finish | Lamp | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
SLPD226
Job Name
Notes
Perle 24 Pendant
Specifications
| Primary Material | Brass |
| Shade Material | Glass |
| Net Weight | 7 lbs |
| Height | 29.3in |
| Width | 2.8in |
| Length | 2.8in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 29.3in |
| Max Hanging height | 29.3in |
| Total Cord Length | |
| Total Stem Length | |
| Stem Qty | |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 501 | |||
| Watts | 10.3 | |||
| Max Wattage Per Bulb | 10.3W | |||
| Input Voltage/ Dimming Type |
120V ELV, TRIAC 277V 0-10V Universal 120V-277V 0-10, ELV, TRIAC |
|||
| CCT |
2700K 3000K |
|||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
