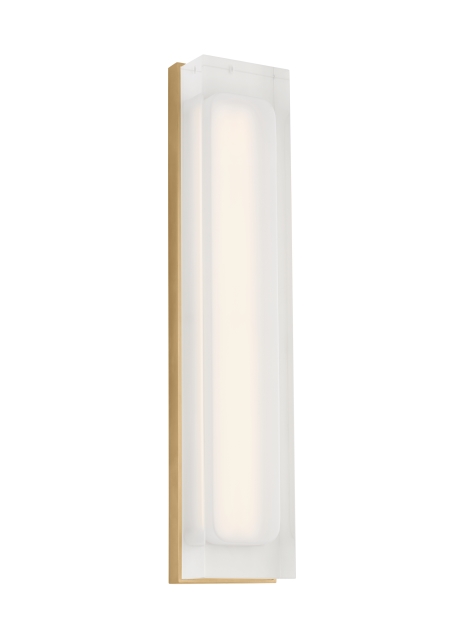

Milley 20 Wall
Product Features
- From the brand formerly known as Tech Lighting
- Designed to glow beautifully through crystal housing formed around an inner etched LED diffuser
- 20" tall and 4" wide
- Available in modern finishes
- Mounts horizontally or vertically
- ADA Compliant
Lamping
Includes 35.5 watt, 2009 delivered lumens, 3000K LED module. Dimmable with most LED compatible ELV TRIAC and 0-10V dimmers. Mounts horizontally or vertically. 120V-277V.
To view all available finish options, please visit techlighting.com
Ordering Information
| SLWS122 | Color Temp | Finish | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
The LED Driver is housed within the junction box for this product
SLWS122
Job Name
Notes
Milley 20 Wall
Specifications
| Primary Material | Steel Or Brass |
| Shade Material | Crystal |
| Net Weight | 11 lbs |
| Height | 20.1in |
| Width | 2.6in |
| Length | 4.2in |
| Min. Extension From Wall | 2.6in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Up / Down | |
| Horizontal / Vertical | |
| Wall / Ceiling Mount | |
| General Listing | ETL Listed |
| Ada Compliant | |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 2009 | |||
| Watts | 35.5 | |||
| Max Wattage Per Bulb | 35.5W | |||
| Input Voltage/ Dimming Type | Universal 120V-277V 0-10, ELV, TRIAC | |||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
