Large

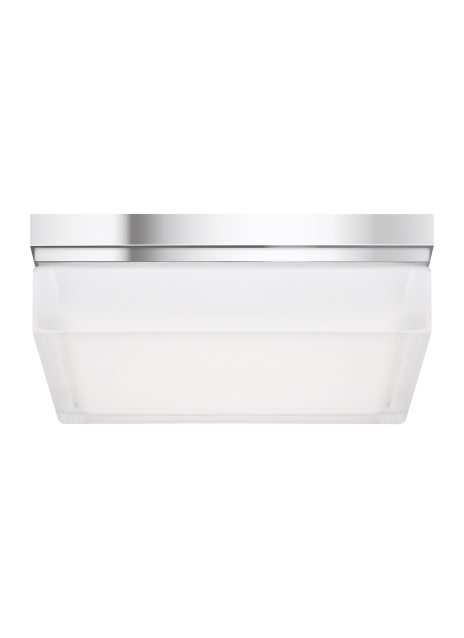

Boxie Large Flush Mount
Product Features
- From the brand formerly known as Tech Lighting
- Clean contemporary design style, constructed of a die-cast metal base and pressed glass shade
- This item is made of natural brass. It is a living finish that will patina and warm with age which adds richness. If it gets an uneven patina or spots, a brass cleaner can restore the finish
- Boxie Small and Large Outdoor fixtures also available
- Lamping options are compatible with most dimmers
- The LED Driver is housed within the junction box. (2.2" Dia | H. .57")
Lamping
LED includes one 25 watt, 905 delivered lumens, LED module. Dimmable with most LED compatible ELV and Triac dimmers. Suitable for wet locations. LED may be mounted on the ceiling or wall. ADA compliant.
Large
Large
Large
Large
Ordering Information
| 700BX | Shape or Size | Finish | Lamp | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700BX
Job Name
Notes
Boxie Large Flush Mount
Specifications
| Primary Material | Glass |
| Shade Material | Glass |
| Net Weight | 10 lbs |
| Height | 2.7in |
| Width | 9in |
| Length | 9in |
| Up light / Down Light / Both? | |
| Wet Listed | Yes |
| Damp Listed | |
| Dry Listed | |
| Wall / Ceiling Mount | |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 905.0 | |||
| Watts | 25 | |||
| Max Wattage Per Bulb | 25W | |||
| Input Voltage/ Dimming Type | Universal 120V-277V ELV, TRIAC | |||
| CCT |
2700K 3000K |
|||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >60000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
