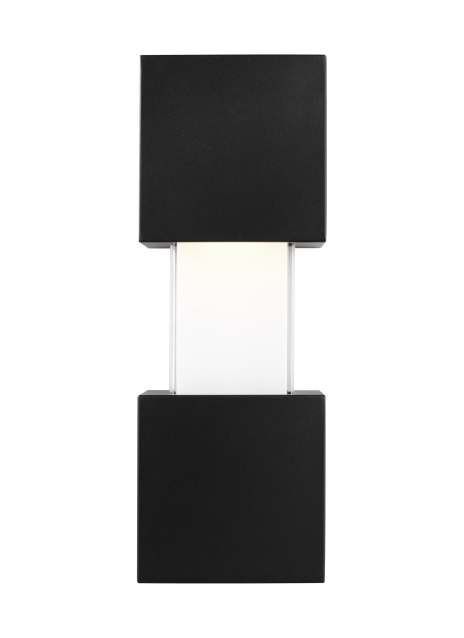

Leagan Wide Medium Wall
Product Features
- From the brand formerly known as Tech Lighting
- Features painted cast glass for soft, beautiful illumination
- Die-cast aluminum structure, powder coat finish, and stainless steel hardware for robust durability in harsh elements
- Ideal for both indoor or outdoor use
- IP 65 Wet Listed
- Ships with an optional secondary back-plate to allow greater flexibility in terms of junction box placement
Lamping
To view all available finish options, please visit techlighting.com
Ordering Information
| 700OWSQGEW | CRI | Color Temp | Length (A) | Finish | Voltage | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
700OWSQGEW
Job Name
Notes
Leagan Wide Medium Wall
Specifications
| Primary Material | Aluminum |
| Shade Material | Glass |
| Net Weight | 9.5 lbs |
| Height | 17.7in |
| Width | 5.3in |
| Length | 6.3in |
| Wet Listed | Yes |
| Damp Listed | |
| Dry Listed | |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 433 | |||
| Watts | 19.3 | |||
| Max Wattage Per Bulb | ||||
| Input Voltage/ Dimming Type | Universal 120V-277V ELV, TRIAC | |||
| CCT | 2700K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >60000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
