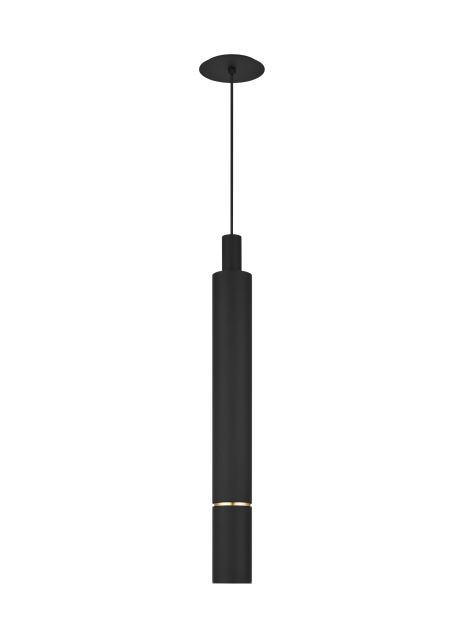

Sottile X-Large Pendant
Product Features
- From the brand formerly known as Tech Lighting
- Combine multiple pendants to create a custom, clustered aesthetic
- The LED Driver is housed within the junction box. (L. 3.03" | W. 1.5" | H. 1.12)
- Ships with three ring details (Natural Brass, Nightshade Black and Polished Nickel) to either match the rest of the pendant or add striking, yet subtle contrast
- Fully dimmable integrated LED lamp
- This item is made of natural brass. It is a living finish that will patina and warm with age which adds richness. If it gets an uneven patina or spots, a brass cleaner can restore the finish
Lamping
Includes 10.9 watts, 921 delivered lumens, 2700K LED module. Dimmable with most LED compatible ELV, TRIAC and 0-10V dimmers. Ships with 12 feet of field-cuttable black cloth cord. 120V-277V.
To view all available finish options, please visit techlighting.com
Ordering Information
| 700TDSOT | Length (A) | Finish | Lamp | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700TDSOT
Job Name
Notes
Sottile X-Large Pendant
Specifications
| Primary Material | Aluminum, Stainless Steel or Brass |
| Shade Material | Aluminum, Stainless Steel or Brass |
| Net Weight | 6 lbs |
| Height | 27in |
| Width | 3in |
| Length | 3in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 33.8in |
| Max Hanging height | 171.8in |
| Total Cord Length | 144in |
| Total Stem Length | |
| Stem Qty | |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 921 | |||
| Watts | 10.9 | |||
| Max Wattage Per Bulb | 10.9W | |||
| Input Voltage/ Dimming Type | Universal 120V-277V 0-10, ELV, TRIAC | |||
| CCT | 2700K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
