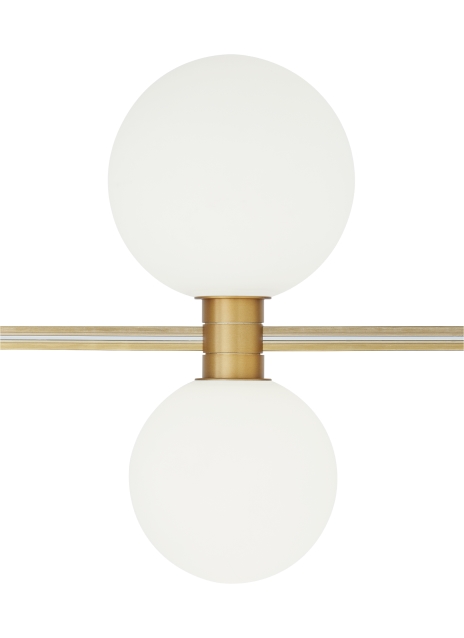

Orbs Head
Product Features
- From the brand formerly known as Tech Lighting
- Mounts to MonoRail for limitless possibilities
- Create a modern light sculpture or custom chandelier
- Fully dimmable integrated LED lamp
Lamping
Includes 12 volt 7.8 watts 401 delivered lumens, 3000K, 90 CRI, LED module. Dimmable with low-voltage or magnetic dimmer (based on transformer). 12" standoff minimum for rail configuration.
To view all available finish options, please visit techlighting.com
Ordering Information
| 700MOORBS | Shape or Size | Finish | Lamp | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700MOORBS
Job Name
Notes
Orbs Head
Specifications
| Primary Material | Aluminum |
| Shade Material | Glass |
| Net Weight | 3 lbs |
| Height | 6in |
| Width | 6in |
| Length | 12.8in |
| Beam Spread | |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | |
| Dry Listed | Yes |
| Min. Hanging Height | |
| Max Hanging height | |
| Total Cord Length | |
| Sloped Ceiling Adaptable? | N/A |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 401 | |||
| Watts | 7.8 | |||
| Max Wattage Per Bulb | 7.8W | |||
| Input Voltage/ Dimming Type | 12V ELV, MLV | |||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
