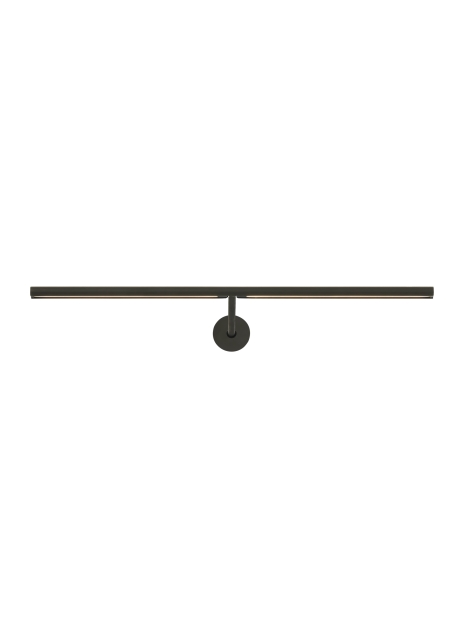

Plural Dome 18 Picture Light
Product Features
- From the brand formerly known as Tech Lighting
- Ships with flangeless mud-in canopy and custom junction box and additional optional flanged canopy
- Pivots for perfect illumination. Max rotation 35°
- 95+ CRI and 2-Step LED binning provides maximum color quality and consistency
- The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. 1")
- Patent pending
Lamping
Includes 13.5 watt, 834 delivered lumens, 2700K or 3000K 95 CRI LED module. Dimmable with most LED compatible ELV, TRIAC and 0-10V dimmers. 120V-277V. Downlight only.
To view all available finish options, please visit techlighting.com
Ordering Information
| 700PLUD | Length (A) | Finish | Lamp | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700PLUD
Job Name
Notes
Plural Dome 18 Picture Light
Specifications
| Primary Material | Aluminum or Brass |
| Shade Material | Acrylic |
| Net Weight | 2.5 lbs |
| Height | 0.5in |
| Width | 8.9in |
| Length | 18in |
| Min. Extension From Wall | 8.9in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Up / Down | |
| Horizontal / Vertical | |
| Wall / Ceiling Mount | |
| General Listing | ETL Listed |
| Ada Compliant | |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 834 | |||
| Watts | 13.5 | |||
| Max Wattage Per Bulb | 13.5W | |||
| Input Voltage/ Dimming Type | Universal 120V-277V 0-10, ELV, TRIAC | |||
| CCT |
2700K 3000K |
|||
| CRI | 95 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
