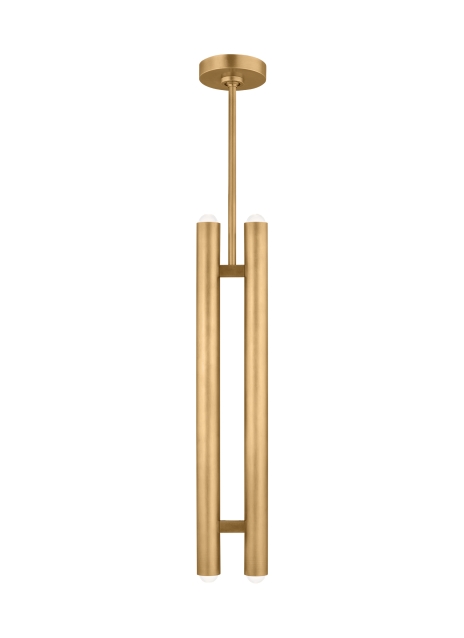

Ebell 2 Light Pendant
Product Features
- From the brand formerly known as Tech Lighting
- Laser etched interior light diffuser
- Works as a stand-alone piece or makes a grand statement by installing in multiples
- Provides up and down light. Includes fully dimmable integrated LED lamp
- The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. 1")
- This item is made of natural brass. It is a living finish that will patina and warm with age which adds richness. If it gets an uneven patina or spots, a brass cleaner can restore the finish
Lamping
Includes 22.2 watt, 1295 total delivered lumens, 90 CRI 2700K LED modules. Dimmable with most LED compatible ELV and TRIAC dimmers. 277V dimmable with 0-10V dimmers. Ships with 4-12" and 2-6" rigid stems. 120V or 277V. Can be installed on a sloped ceiling up to 30°. Up and downlight.
To view all available finish options, please visit techlighting.com
Ordering Information
| 700TDEBL2 | Length (A) | Finish | Lamp | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700TDEBL2
Job Name
Notes
Ebell 2 Light Pendant
Specifications
| Primary Material | Brass |
| Shade Material | Crystal |
| Net Weight | 7 lbs |
| Height | 23.1in |
| Width | 1.5in |
| Length | 4.5in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 27.5in |
| Max Hanging height | 81.5in |
| Total Cord Length | |
| Total Stem Length | Up to 60in |
| Stem Qty | 6 |
| Sloped Ceiling Adaptable? | Yes 30° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 1295 | |||
| Watts | 22.2 | |||
| Max Wattage Per Bulb | 22.2W | |||
| Input Voltage/ Dimming Type |
120V ELV, TRIAC 277V 0-10V |
|||
| CCT | 2700K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
