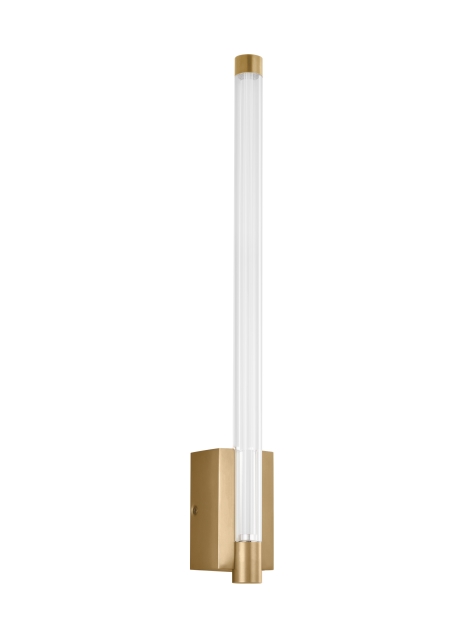

Phobos 1 Light Wall Sconce
Product Features
- From the brand formerly known as Tech Lighting
- Laser etched tubing to diffuse light surrounded by clear borosilicate glass
- ADA Compliant
- Fully dimmable integrated LED lamp
- The LED Driver is housed within the junction box. (L. 3.03" | W. 1.22" | H. .83")
- This item is made of natural brass. It is a living finish that will patina and warm with age which adds richness. If it gets an uneven patina or spots, a brass cleaner can restore the finish
Lamping
Includes 7.7 watt, 318 delivered lumens, 2700K LED module. 120V dimmable with most LED compatible ELV and TRIAC dimmers. 277V compatible with 0-10V dimmers. Mounts vertically only. Up or downlight. 120V or 277V.
To view all available finish options, please visit techlighting.com
Ordering Information
| 700WSPHB | Length (A) | Finish | Lamp | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700WSPHB
Job Name
Notes
Phobos 1 Light Wall Sconce
Specifications
| Primary Material | Brass |
| Shade Material | Glass |
| Net Weight | 3 lbs |
| Height | 20.7in |
| Width | 2.6in |
| Length | 2.5in |
| Min. Extension From Wall | 2.6in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Up / Down | |
| Horizontal / Vertical | |
| Wall / Ceiling Mount | |
| General Listing | ETL Listed |
| Ada Compliant | |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 318 | |||
| Watts | 7.7 | |||
| Max Wattage Per Bulb | 7.7W | |||
| Input Voltage/ Dimming Type |
120V ELV, TRIAC 277V 0-10V |
|||
| CCT | 2700K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
