Dessau 8 Picture Light
Product Features
- From the brand formerly known as Tech Lighting

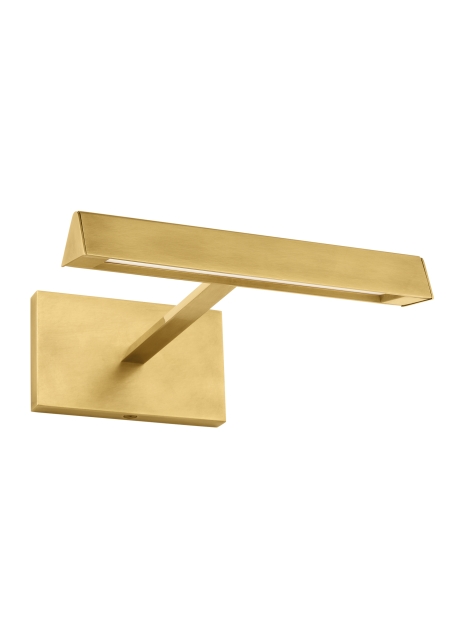

- The Dessau Picture Light is the American Modern version of the traditional picture light, featuring clean straight lines and integrated LED.
- Complete the look with the entire collection including Table Lamp, Floor Lamp and Linear Suspension.
- The LED Driver is housed within the junction box. (L. 3.03" | W. 1.22" | H. .83")
- This item is made of natural brass. It is a living finish that will patina and warm with age which adds richness. If it gets an uneven patina or spots, a brass cleaner can restore the finish
Lamping
Includes 9.1 watt, 495 delivered lumens, 3000K 90 CRI LED module. 120V dimmable with most LED compatible ELV and TRIAC Dimmers. 277V compatible with 0-10V dimmers. 120V or 277V.
To view all available finish options, please visit techlighting.com
Ordering Information
| 700DES | Length (A) | Finish | Lamp | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700DES
Job Name
Notes
Dessau 8 Picture Light
Specifications
| Primary Material | Aluminum or Brass |
| Shade Material | Acrylic |
| Net Weight | 1.5 lbs |
| Height | 3in |
| Width | 8.6in |
| Length | 8.1in |
| Min. Extension From Wall | 8.6in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Up / Down | |
| Horizontal / Vertical | |
| Wall / Ceiling Mount | |
| General Listing | ETL Listed |
| Ada Compliant | |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 495 | |||
| Watts | 9.1 | |||
| Max Wattage Per Bulb | 9.1W | |||
| Input Voltage/ Dimming Type |
120V ELV, TRIAC 277V 0-10V |
|||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
