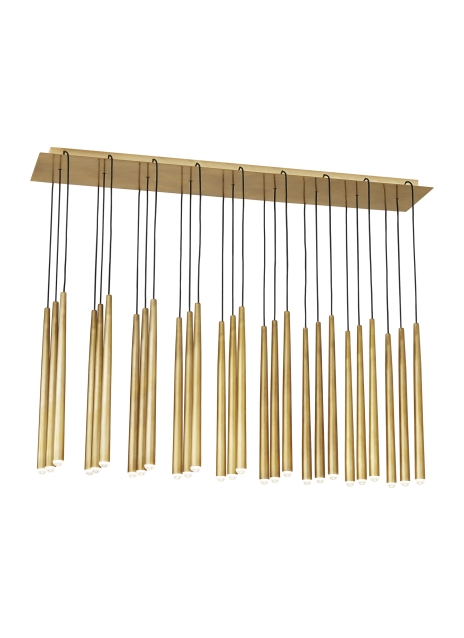

Pylon 27 Light Chandelier
Product Features
- From the brand formerly known as Tech Lighting
- Canopy ships with 9 feet of cable per pendant which can be easily cut in the field
- Each port in the canopy comes with a plug to cover an unused ports
- Pendant feature a quick-connect simplifying installation
- Optional spacers facilitate unique geometries while adding depth and dimension to this stunning collection.
- This item is made of natural brass. It is a living finish that will patina and warm with age which adds richness. If it gets an uneven patina or spots, a brass cleaner can restore the finish
Lamping
Includes 120V or 277V 124.2 watts, 7965 delivered lumens, 3000K LED module. Dimmable with most LED compatible ELV and TRIAC dimmers. 277V dimmable with 0-10V dimmers. Ships with 9 feet of field-cuttable matte black cord. Can be installed on a sloped ceiling up to 45° when swag hooks are used.
Ordering Information
| 700TRSPPYL | Shape or Size | Finish | Lamp | Voltage | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
700TRSPPYL
Job Name
Notes
Pylon 27 Light Chandelier
Specifications
| Primary Material | Aluminum or Brass |
| Shade Material | Acrylic |
| Net Weight | 39 lbs |
| Height | 18.6in |
| Width | 11.2in |
| Length | 43.2in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 30.6in |
| Max Hanging height | 109.6in |
| Total Cord Length | 108in |
| Total Stem Length | |
| Stem Qty | |
| Sloped Ceiling Adaptable? | N/A |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 7965 | |||
| Watts | 4.6 | |||
| Max Wattage Per Bulb | 124.2W | |||
| Input Voltage/ Dimming Type |
120V ELV, TRIAC 277V 0-10V |
|||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
