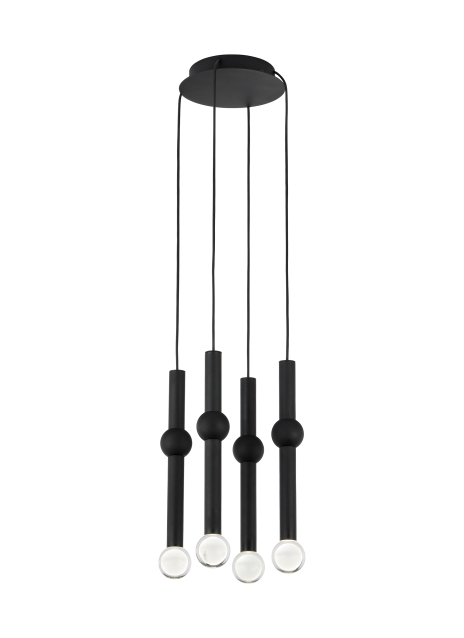

Guyed 4 Light Chandelier
Product Features
- From the brand formerly known as Tech Lighting
- Includes optional complementary spherical metal detail that can be placed anywhere along the body
- Canopy ships with 12 feet of cable per pendant which can be easily cut in the field. Pendant feature a quick-connect simplifying installation
- Each port in the canopy comes with a plug to cover an unused ports
- This item is made of natural brass. It is a living finish that will patina and warm with age which adds richness. If it gets an uneven patina or spots, a brass cleaner can restore the finishtallation
- Optional spacers facilitate unique geometries while adding depth and dimension to this stunning collection.
Lamping
Includes 120V-277V 18.4 watts, 708 delivered lumens, 3000K LED module. Dimmable with most LED compatible ELV and TRIAC dimmers. Ships with 11 feet of field-cuttable matte black cord. Can be installed on a sloped ceiling up to 45° when swag hooks are used.
Ordering Information
| 700TRSPGYD | Shape or Size | Finish | Lamp | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700TRSPGYD
Job Name
Notes
Guyed 4 Light Chandelier
Specifications
| Primary Material | Aluminum or Brass |
| Shade Material | Crystal |
| Net Weight | 11 lbs |
| Height | 14.1in |
| Width | 10in |
| Length | 10in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 24.7in |
| Max Hanging height | 144.7in |
| Total Cord Length | 132in |
| Total Stem Length | |
| Stem Qty | |
| Sloped Ceiling Adaptable? | N/A |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 708 | |||
| Watts | 4.6 | |||
| Max Wattage Per Bulb | 18.4W | |||
| Input Voltage/ Dimming Type | Universal 120V-277V ELV, TRIAC | |||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
