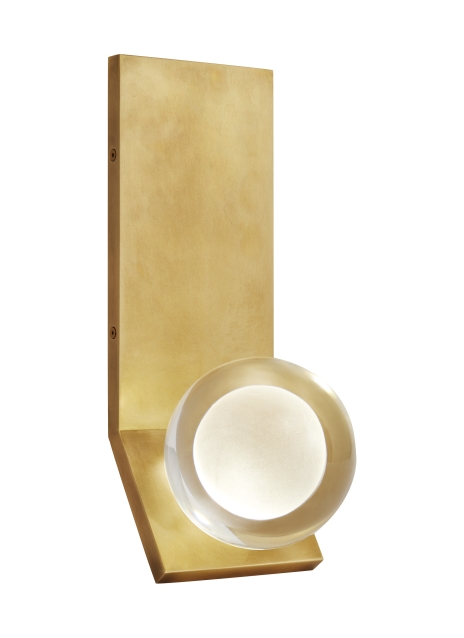

Mina Wall
Product Features
- From the brand formerly known as Tech Lighting
- A beautiful resting crystal orb, laser-etched and illuminated by a powerful firing LED
- This item is made of natural brass. It is a living finish that will patina and warm with age which adds richness. If it gets an uneven patina or spots, a brass cleaner can restore the finish
- Complete the look with the entire collection including Table Lamp and Line-Voltage Pendants
- The LED Driver is housed within the junction box. (L. 3.03" | W. 1.22" | H. .83")
- Mounts up or down
Lamping
Includes 14.8 watt, 753 delivered lumens, 3000K, 90 CRI LED module. 120V dimmable with most LED compatible ELV and Triac dimmers. 277V compatible with 0-10V dimmers. Mounts up or down.
To view all available finish options, please visit techlighting.com
Ordering Information
| 700WSMINA | Finish | Lamp | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
700WSMINA
Job Name
Notes
Mina Wall
Specifications
| Primary Material | Aluminum |
| Shade Material | Glass |
| Net Weight | 7.5 lbs |
| Height | 13.9in |
| Width | 6.2in |
| Length | 5in |
| Min. Extension From Wall | 6.2in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Up / Down | |
| Horizontal / Vertical | |
| Wall / Ceiling Mount | |
| General Listing | ETL Listed |
| Ada Compliant | |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 753 | |||
| Watts | 14.8 | |||
| Max Wattage Per Bulb | 14.8W | |||
| Input Voltage/ Dimming Type |
120V ELV, TRIAC 277V 0-10V |
|||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
