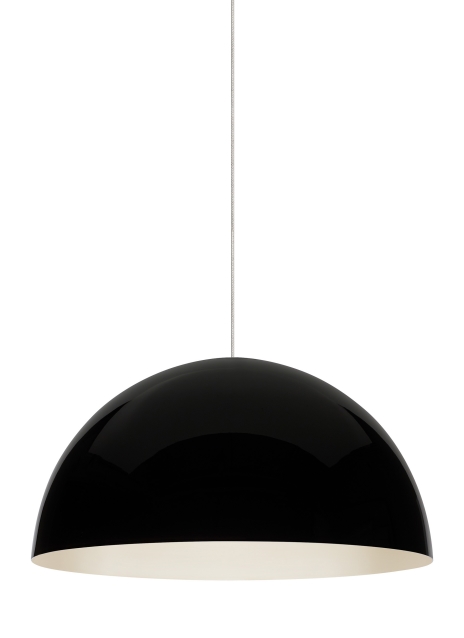

Mini Powell Street Pendant
Product Features
- From the brand formerly known as Tech Lighting
- Sleek and contemporary design with an attractive glossy exterior finish and a modern matte white inner reflector
- Monopoint version - The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. .98")
- Coordinate your look with the larger size Powell Street Line-Voltage Pendant
- Dimmable with low-voltage or magnetic dimmer (based on transformer)
- Includes 6 feet of field-cuttable cable
Lamping
Includes 12 volt 6.6 watt, 300 delivered lumen, 3000K, integrated LED module. Dimmable with low-voltage electronic or magnetic dimmer (based on transformer). Includes 6 feet of field-cuttable satin cable.
Ordering Information
| 700 | System PSP | Color | Finish | Lamp | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
Note. Note. MP includes 4" Round Flush Canopy.
700
Job Name
Notes
PSP
Mini Powell Street Pendant
Specifications
| Primary Material | Metal |
| Shade Material | Metal |
| Net Weight | 4 lbs |
| Height | 6in |
| Width | 12in |
| Length | 12in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | |
| Dry Listed | Yes |
| Min. Hanging Height | 12in |
| Max Hanging height | 78in |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 300 | |||
| Watts | 6.6 | |||
| Max Wattage Per Bulb | 6.6W | |||
| Input Voltage/ Dimming Type |
12V ELV, MLV 120V ELV, MLV |
|||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
