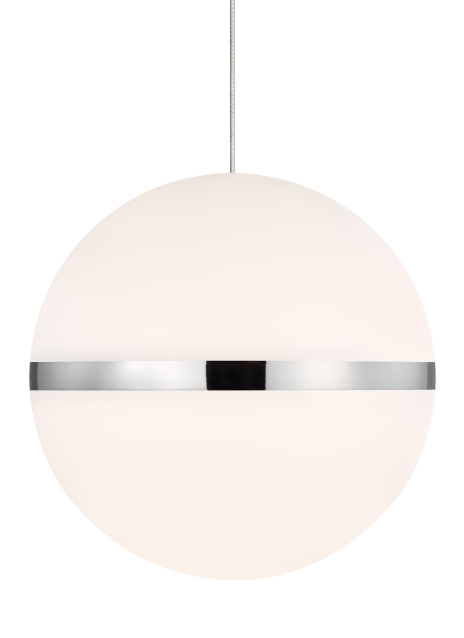

Mini Hanea Pendant
Product Features
- From the brand formerly known as Tech Lighting
- Inspired by mid-century design, the Mini Hanea Pendant celebrates the spherical geometry with an accent band in three finishes
- Available in modern finishes
- Low-Voltage pendants are great solution as individual pendants and complement our Tech Lighting MonoRail Track System
- Dimmable with low-voltage or magnetic dimmer (based on transformer)
- Monopoint version - The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. .98")
Lamping
Rated for (1) Low-Voltage, 20 watt max, bi-pin lamp (Lamp Not Included). LED includes 12 volt 5 watt 290 delivered lumens, 3000K, replaceable LED module. Dimmable with low-voltage electronic or magnetic dimmer (based on transformer). Includes 6 feet of field-cuttable cable.
Ordering Information
| 700 | System HNE | Finish | Lamp | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
Note. Note. MP includes 4" Round Flush Canopy. Nightshade Black not available in MO.
700
Job Name
Notes
HNE
Mini Hanea Pendant
Specifications
| Primary Material | Aluminum |
| Shade Material | Acrylic |
| Net Weight | 2.5 lbs |
| Height | 7in |
| Width | 7in |
| Length | 7in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | |
| Dry Listed | Yes |
| Min. Hanging Height | 13in |
| Max Hanging height | 79in |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 290 | |||
| Watts | 5 | |||
| Max Wattage Per Bulb | 20W | 20W | ||
| Input Voltage/ Dimming Type |
12V ELV, MLV 120V ELV, MLV |
12V ELV, MLV 120V ELV, MLV |
||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >30000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | GY 6.35 | GY 6.35 | ||
| Lamp Shape | T4 | T4 | ||
| Lamp Included? | True | False | ||
| Warranty** | 1 Year | 1 Year |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | Yes | |
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | Yes | Yes |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
