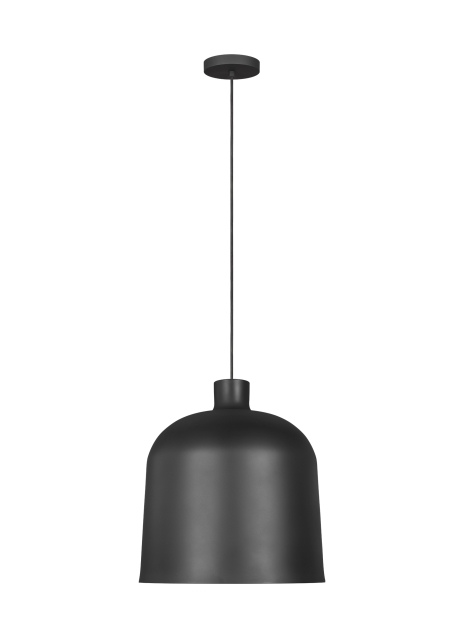

Foundry Pendant
Product Features
- From the brand formerly known as Tech Lighting
- Foundry brings an urban edge to its vintage industrial silhouette
- Available in modern finishes
- Designed to a generous scale of 17 inches high and 16 inches in diameter
- Includes 12 feet of field-cuttable black cloth cord
- The LED Driver is housed within the junction box. (L. 3.03" | W. 1.22" | H. .83")
Lamping
Includes 120 volt, 12.9 watt, 226 delivered lumen, 3000K, 90 CRI LED module. Dimmable with most LED compatible ELV and Triac dimmers. Includes 12 feet of field-cuttable black cloth cord.
Ordering Information
| 700 | System FND | Finish | Lamp | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700
Job Name
Notes
FND
Foundry Pendant
Specifications
| Primary Material | Steel |
| Shade Material | Steel |
| Net Weight | 15 lbs |
| Height | 17.4in |
| Width | 16in |
| Length | 16in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 24.2in |
| Max Hanging height | 162.2in |
| Total Cord Length | 144in |
| Total Stem Length | |
| Stem Qty | |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 226 | |||
| Watts | 12.9 | |||
| Max Wattage Per Bulb | 12.9W | |||
| Input Voltage/ Dimming Type | 120V ELV, TRIAC | |||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
