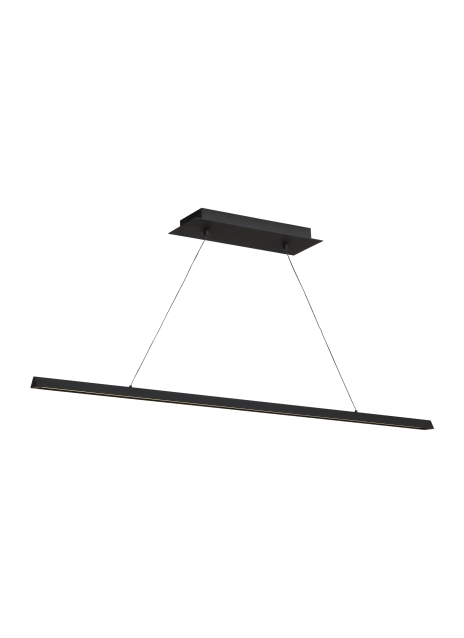

Dessau 48 Linear Suspension
Product Features
- From the brand formerly known as Tech Lighting
- The Dessau 48 Linear Suspension is perfect for the modern minimalist with a slim recessed design housing a panel of integrated LED lights.
- Offered in modern finishes
- Fixture includes a selectable CCT feature upon installation, offering the option of 2700K or 3000K to fit your desired ambiance
- Includes 12 feet of field-cuttable satin cable
- This item is made of natural brass. It is a living finish that will patina and warm with age which adds richness. If it gets an uneven patina or spots, a brass cleaner can restore the finish
Lamping
Includes 36.2 watts, 2261 total delivered lumens, 2700K/3000K selectable LED modules. Dimmable with most LED compatible ELV and TRIAC dimmers. Ships with 12 feet of field-cuttable satin cable. Can be installed on a sloped ceiling up to 45°. 120V
Ordering Information
| 700LSDES | Length (A) | Finish | Lamp | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700LSDES
Job Name
Notes
Dessau 48 Linear Suspension
Specifications
| Primary Material | Aluminum |
| Shade Material | Aluminum |
| Net Weight | 7 lbs |
| Height | 1.3in |
| Width | 1.5in |
| Length | 48.2in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 12in |
| Max Hanging height | 120in |
| Total Cord Length | 144in |
| Total Stem Length | |
| Stem Qty | |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 2261 | |||
| Watts | 36.2 | |||
| Max Wattage Per Bulb | 36.2W | |||
| Input Voltage/ Dimming Type | 120V ELV, TRIAC | |||
| CCT | 2700K/3000K Selectable | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
