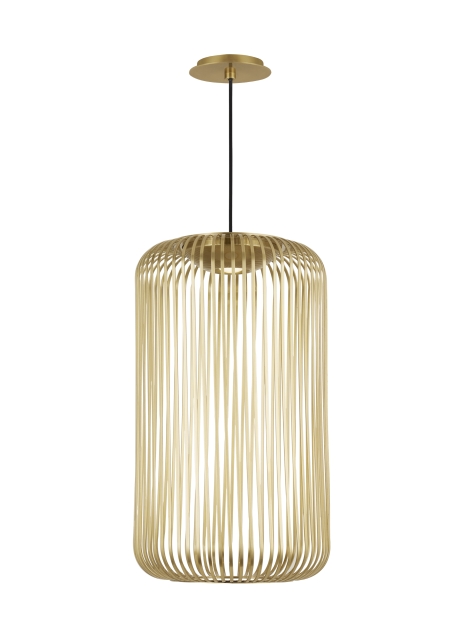

Kai 1 Pendant
Product Features
- From the brand formerly known as Tech Lighting
- The Kai Pendant is a modern take inspired by Japanese traditional lanterns
- Offered in modern finishes
- Designed to be installed individually or multiples for a dramatic statement.
- Includes 12 feet of field-cuttable black cloth cord
- The LED Driver is housed within the junction box. (L. 3.03" | W. 1.22" | H. .83")
Lamping
Includes 12.5 watts, 638 delivered lumens, 3000K LED module. Dimmable with most LED compatible ELV and TRIAC dimmers. Ships with 12 feet of field-cuttable black cloth cord. 120V
Ordering Information
| 700 | System KAI1 | Finish | Lamp | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700
Job Name
Notes
KAI1
Kai 1 Pendant
Specifications
| Primary Material | Aluminum |
| Shade Material | Aluminum |
| Net Weight | 10 lbs |
| Height | 20.5in |
| Width | 12in |
| Length | 12in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 27.3in |
| Max Hanging height | 165.3in |
| Total Cord Length | 144in |
| Total Stem Length | |
| Stem Qty | |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 638 | |||
| Watts | 12.5 | |||
| Max Wattage Per Bulb | 12.5W | |||
| Input Voltage/ Dimming Type | 120V ELV, TRIAC | |||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
