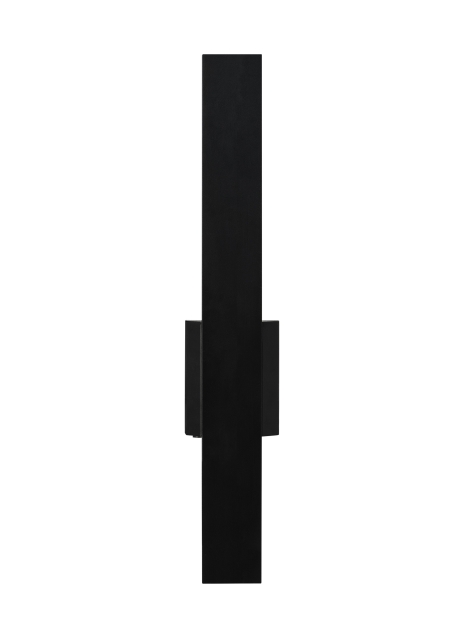

Blade 24 Outdoor Wall
Product Features
- From the brand formerly known as Tech Lighting
- Selectable CCT (2700K/3000K)
- Contemporary design features indirect illumination
- Aluminum construction with stainless steel mounting hardware
- Wet Listed, IP65 Rated. Universal 120V-277V
- Available in modern finish options
Lamping
To view all available finish options, please visit techlighting.com
Ordering Information
| 700OWBLD | CRI | Color Temp | Length (A) | Finish | Voltage | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
700OWBLD
Job Name
Notes
Blade 24 Outdoor Wall
Specifications
| Primary Material | Aluminum |
| Shade Material | Aluminum |
| Net Weight | 2 lbs |
| Height | 24in |
| Width | 1.6in |
| Length | 4.3in |
| Wet Listed | Yes |
| Damp Listed | |
| Dry Listed | |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 1951 | |||
| Watts | 27.7 | |||
| Max Wattage Per Bulb | ||||
| Input Voltage/ Dimming Type | Universal 120V-277V 0-10, ELV, TRIAC | |||
| CCT | 2700K/3000K Selectable | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >60000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
