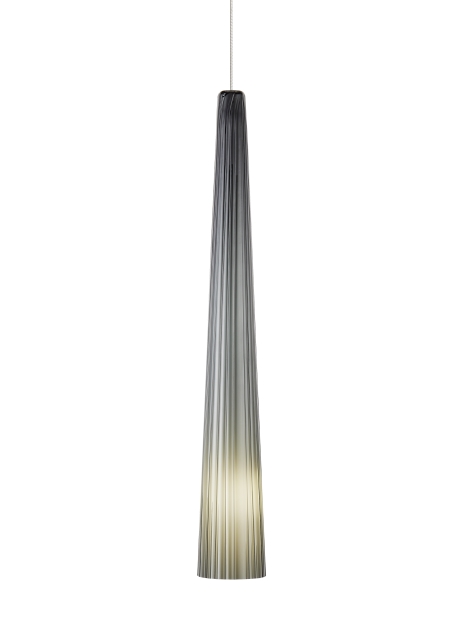

Zenith Small Pendant
Product Features
- From the brand formerly known as Tech Lighting
- Slender organic shaped glass shade exudes drama and sophistication
- Vertical stringers add depth and dimension to the elongated shaped pendant
- Available in modern finishes and multiple sizes
- Monopoint version - The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. .98")
- Fully dimmable LED or halogen lamping options create the desired ambiance
Lamping
Includes low-voltage, 50 watt halogen bi-pin lamp or 5 watt, 258 delivered lumen, 3000K, replaceable Tech Lighting LED module and six feet of field-cuttable cable. Dimmable with low-voltage electronic or magnetic dimmer (based on the transformer).
To view all available finish options, please visit techlighting.com
Ordering Information
| 700 | System ZEN | Shape or Size | Color | Finish | Lamp | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
Note: MP includes 4" Round Flush Canopy.Note: MP includes 4 Round Flush Canopy.
Chrome not offered on Monorail & Two~Circuit Monorail.
700
Job Name
Notes
ZEN
Zenith Small Pendant
Specifications
| Primary Material | Glass |
| Shade Material | Glass |
| Net Weight | 2 lbs |
| Height | 19.5in |
| Width | 3in |
| Length | 3in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | |
| Dry Listed | |
| Min. Hanging Height | 26in |
| Max Hanging height | 92in |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 258.0 | 558 | ||
| Watts | 5 | 50 | ||
| Max Wattage Per Bulb | 50W | 50W | ||
| Input Voltage/ Dimming Type |
12V ELV, MLV 120V ELV, MLV |
12V ELV, MLV 120V ELV, MLV |
||
| CCT | 3000K | 3000K | ||
| CRI | 90 CRI | 100 CRI | ||
| LED Lifetime | ||||
| L70 | >30000 | |||
| Average Bulb Hours | 2000 | |||
| Field Serviceable LED | ||||
| Lamp Base | GY 6.35 | GY 6.35 | ||
| Lamp Shape | T4 | T4 | ||
| Lamp Included? | True | True | ||
| Warranty** | 1 Year | 1 Year |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | Yes |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
