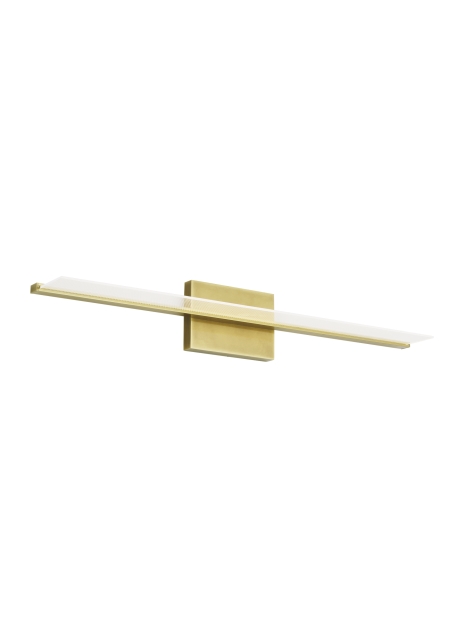

Span 36 Bath
Product Features
- From the brand formerly known as Tech Lighting
- Ultra-thin, ultra-modern architectural style
- Edge-lit light guide technology
- Fully dimmable integrated LED lamp
- Available in modern finishes
- Ideal for bathroom and vanity lighting
Lamping
Includes 34.3 watt, 1275 total delivered lumens, 3000K LED module. 3500K only available in nightshade black and plated brass finish. Dimmable with most LED compatible ELV dimmers. 277V compatible with 0-10V dimmer. Mounts horizontally or vertically.
To view all available finish options, please visit techlighting.com
Ordering Information
| 700BCSPAN | Shape or Size | Length (A) | Finish | Lamp | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
700BCSPAN
Job Name
Notes
Span 36 Bath
Specifications
| Primary Material | Metal |
| Shade Material | Acrylic |
| Net Weight | 4 lbs |
| Height | 5.5in |
| Width | 5.5in |
| Length | 35.3in |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 1275 | |||
| Watts | 34.3 | |||
| Max Wattage Per Bulb | 34.3W | |||
| Input Voltage/ Dimming Type |
120V ELV, TRIAC 277V 0-10V |
|||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
