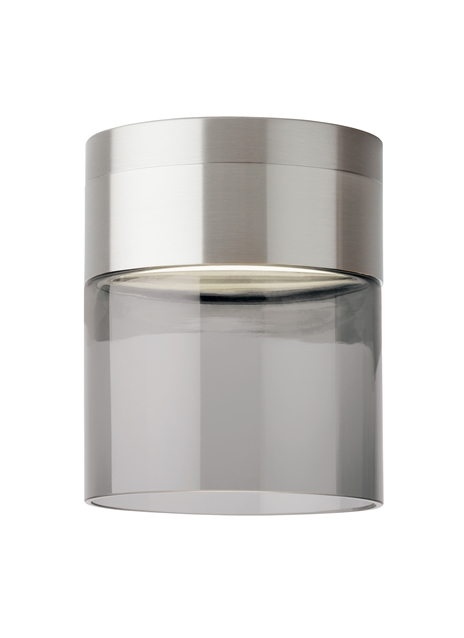

Manette Small Flush Mount
Product Features
- From the brand formerly known as Tech Lighting
- Features a sleek glass shade that’s suspended from a handsome die-cast metal band
- Even generous light output free of hot spots and offensive glare
- Cleverly concealed LED light source
- Complementary line-voltage and low-voltage pendants
- The LED Driver is housed within the junction box. (L. 3.03" | W. 1.22" | H. .83")
Lamping
The shade illuminates with an even glow free of hot spots found with traditional light sources. Includes 17 watt, 808 delivered lumen, 90 CRI 3000K LED module. Dimmable with most LED compatible ELV or Triac dimmers.
Ordering Information
| 700FMMAN | Shape or Size | Color | Finish | Lamp | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
700FMMAN
Job Name
Notes
Manette Small Flush Mount
Specifications
| Primary Material | Glass |
| Shade Material | Glass |
| Net Weight | 4 lbs |
| Height | 6.3in |
| Width | 5in |
| Length | 5in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Wall / Ceiling Mount | |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 808 | |||
| Watts | 17 | |||
| Max Wattage Per Bulb | 17W | |||
| Input Voltage/ Dimming Type |
120V ELV, TRIAC 277V 0-10V |
|||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | No | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
