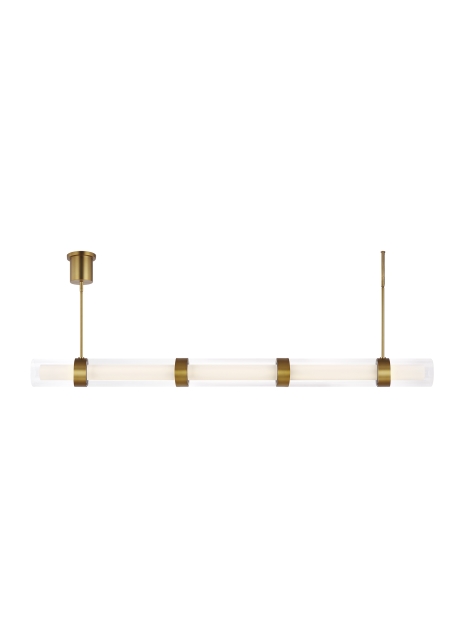

Wit Linear Suspension
Product Features
- From the brand formerly known as Tech Lighting
- A linear elongated cylindrical suspension designed with striking LEDs when turned on and presents as modern décor when turned off
- Available in modern finishes as well as multiple sizes
- Complete the look with the Wit Pendants, also available in multiple sizes
- Includes four 6 inch & eight 12 inch stems in coordinating finish
- Can be installed on a sloped ceiling up to 45°
Lamping
5 Glass. 120 volt, 54.1 watts, 3950 delivered lumens, 3000K, LED linear module. 6 Glass. 120 volt, 64.3 watts, 4817 delivered lumens, 3000K, LED linear module. 7 Glass. 120 volt, 77.7 watts, 5606 delivered lumens, 3000K, LED linear module. Dimmable with most LED compatible ELV dimmers. Includes four 6 inch & eight 12 inch stems in coordinating finish. Can be installed on a sloped ceiling up to 45°.
To view all available finish options, please visit techlighting.com
Ordering Information
| 700LSWIT | Shape or Size | Finish | Lamp | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700LSWIT
Job Name
Notes
Wit Linear Suspension
Specifications
| Primary Material | Steel |
| Shade Material | Glass |
| Net Weight | 10 lbs |
| Height | 3.9in |
| Width | 3.9in |
| Length | 55.93in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 16.91in |
| Max Hanging height | 68.8in |
| Total Cord Length | |
| Total Stem Length | Up to 120in |
| Stem Qty | 12 |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens |
3950 4817 5606 |
|||
| Watts |
54.1 64.3 77.7 |
|||
| Max Wattage Per Bulb | 54.1W | |||
| Input Voltage/ Dimming Type | Universal 120V-277V ELV | |||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
