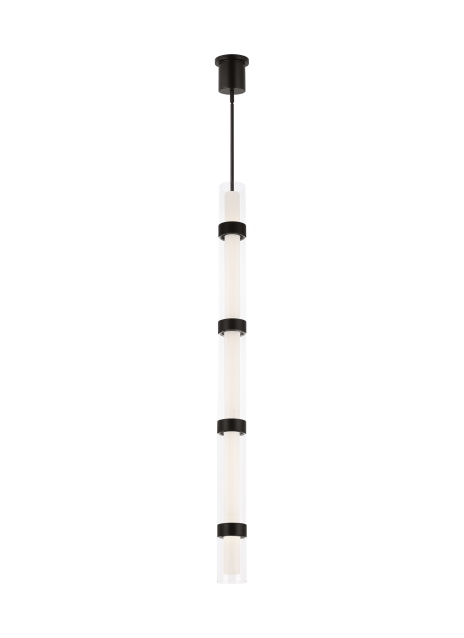

Wit Pendant
Product Features
- From the brand formerly known as Tech Lighting
- An elongated cylindrical pendant designed with striking LEDs when turned on and presents as modern décor when turned off
- Available in multiple lengths and finishes
- Complete the look with the Wit Linear Suspension
- Can be installed on a sloped ceiling up to 45°
Lamping
3 Glass. 120 volt, 29.2 watts, 1880 delivered lumens, 3000K, LED linear module. 4 Glass. 120 volt, 41.3 watts, 2958 delivered lumens, 3000K, LED linear module. 5 Glass. 120 volt, 53.6 watts, 4117 delivered lumens, 3000K, LED linear module. 6 Glass. 120 volt, 65.8 watts, 4841 delivered lumens, 3000K, LED linear module. 7 Glass. 120 volt, 74.6 watts, 5296 delivered lumens, 3000K, LED linear module. Dimmable with most LED compatible ELV dimmers. Includes two 6 inch & four 12 inch stems in coordinating finish. Can be installed on a sloped ceiling up to 45°.
To view all available finish options, please visit techlighting.com
Ordering Information
| 700TDWIT | Shape or Size | Finish | Lamp | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700TDWIT
Job Name
Notes
Wit Pendant
Specifications
| Primary Material | Steel |
| Shade Material | Glass |
| Net Weight | 8 lbs |
| Height | 41.9in |
| Width | 3.9in |
| Length | 3.9in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 54.6in |
| Max Hanging height | 102.6in |
| Total Cord Length | |
| Total Stem Length | Up to 60in |
| Stem Qty | 6 |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens |
2958 4117 |
|||
| Watts |
41.3 53.6 |
|||
| Max Wattage Per Bulb | 41.3W | |||
| Input Voltage/ Dimming Type | Universal 120V-277V ELV | |||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
