Orbel 3-Light Bath
Product Features
- From the brand formerly known as Tech Lighting

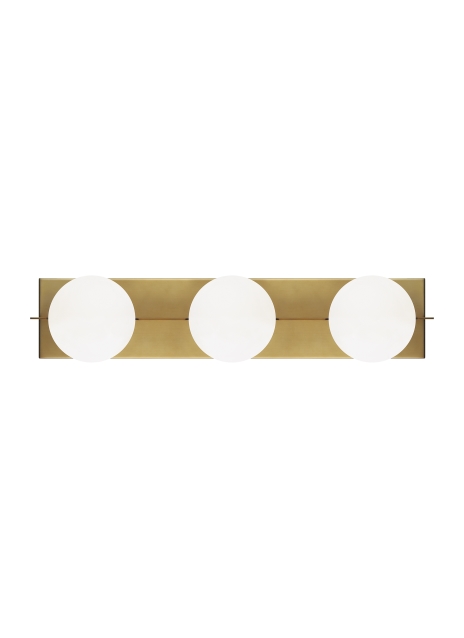

- Inspired by Mid-Century modern art, the Orbel bath light features three stacked frosted spheres supported by a rectangular metal base
- Available in modern finishes
- Complete the look with other fixtures in the Orbel family, Flush Mount, Wall Sconce and Pendants
- Mounts horizontally or vertically
Lamping
No Lamp rated for (3) 5 watt max G9 bi-pin lamps (Not included). LED includes (3) 5 watt, 13.24 watts, 1113 total delivered lumens, 3000K LED G9 bi-pin lamps. Dimmable with most LED compatible ELV and TRIAC dimmers. Mounts horizontally or vertically.
Ordering Information
| 700BCOBL | Shape or Size | Finish | Lamp | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700BCOBL
Job Name
Notes
Orbel 3-Light Bath
Specifications
| Primary Material | Aluminum or Brass |
| Shade Material | Glass |
| Net Weight | 4 lbs |
| Height | 5in |
| Width | 6.8in |
| Length | 24in |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 1113.0 | |||
| Watts | 5 | |||
| Max Wattage Per Bulb | 5W | 5W | ||
| Input Voltage/ Dimming Type | 120V ELV, TRIAC | 120V ELV, TRIAC | ||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >25000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | G9 | G9 | ||
| Lamp Shape | T4 | T4 | ||
| Lamp Included? | True | False | ||
| Warranty** | 1 Year | 1 Year |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | N/A | |
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | Yes | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
