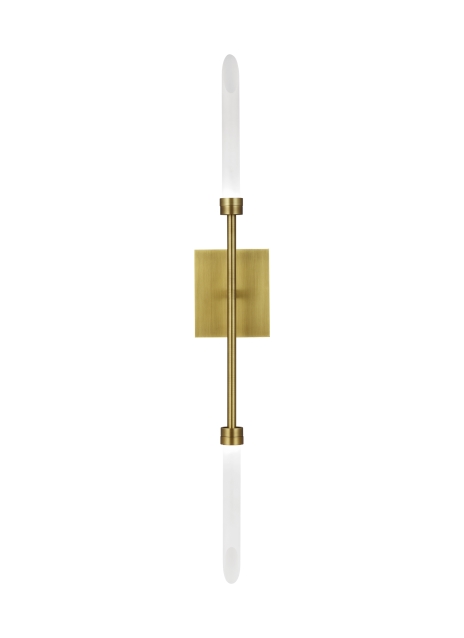

Spur Wall
Product Features
- From the brand formerly known as Tech Lighting
- For the modern appeal, two glass spurs extend in opposite directions and are illuminated by a compact diffused LED
- Mounts vertically or horizontally to accommodate any space
- Complete the look with the entire Spur family, including the chandeliers, ceiling mount and pendant
- Lamping options are compatible with most dimmers
- The LED Driver is housed within the junction box. (L. 3.03" | W. 1.22" | H. .83")
Lamping
Includes 120 volt 11 watts, 729 total delivered lumens 2700K LED module. Dimmable with most LED compatible ELV and TRIAC dimmers. 277V compatible with 0-10V dimmers. Mounts up or down.
To view all available finish options, please visit techlighting.com
Ordering Information
| 700WSSPR | Finish | Lamp | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
700WSSPR
Job Name
Notes
Spur Wall
Specifications
| Primary Material | Steel |
| Shade Material | Glass |
| Net Weight | 2 lbs |
| Height | 29.8in |
| Width | 2.7in |
| Length | 4.3in |
| Min. Extension From Wall | 2.7in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Up / Down | |
| Horizontal / Vertical | |
| Wall / Ceiling Mount | |
| General Listing | ETL Listed |
| Ada Compliant | |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 729 | |||
| Watts | 11 | |||
| Max Wattage Per Bulb | 11W | |||
| Input Voltage/ Dimming Type |
120V ELV, TRIAC 277V 0-10V |
|||
| CCT | 2700K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
