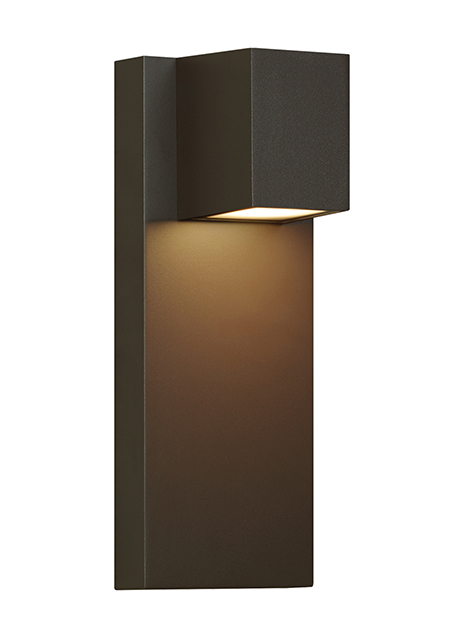

Quadrate Outdoor Wall
Product Features
- From the brand formerly known as Tech Lighting
- Powerful, long lasting (L70, 70,000 hours) dimmable LED tested against the highest quality standards to ensure it delivers consistent LED performance and color over time.
- Die-cast aluminum structure, powder coat finish and stainless steel hardware for robust durability in harsh elements.
- Wet listed, IP65 (International Protection rating indicating resistance to dust and water. Suitable and safe for commercial use).
- 5- year Warranty. Go to www.techlighting.com for warranty details.
- Available in modern finishes
Lamping
Ordering Information
| 700WSQDR | Finish | Lamp | ||||||
|---|---|---|---|---|---|---|---|---|
|
|
700WSQDR
Job Name
Notes
Quadrate Outdoor Wall
Specifications
| Primary Material | Aluminum |
| Shade Material | Aluminum |
| Net Weight | 3.5 lbs |
| Height | 13in |
| Width | 4.8in |
| Length | 5in |
| Wet Listed | Yes |
| Damp Listed | |
| Dry Listed | |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 991.0 | |||
| Watts | 26.2 | |||
| Max Wattage Per Bulb | 26.2W | |||
| Input Voltage/ Dimming Type | 120V ELV | |||
| CCT | 3000K-2200K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >60000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
