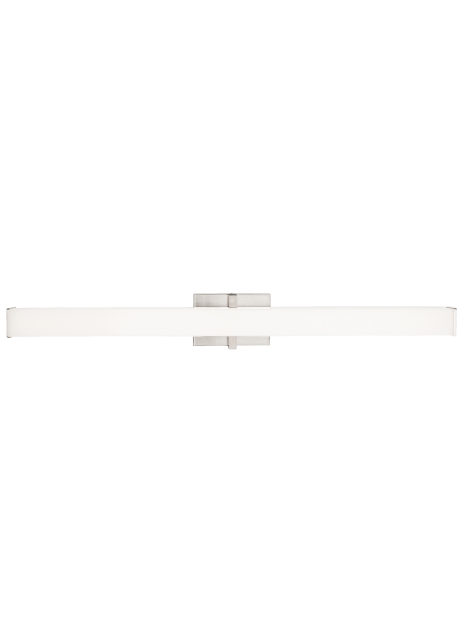

Ellis 36 Bath
Product Features
- From the brand formerly known as Tech Lighting
- Sleek and stylish contemporary Ellis 36 Bath Bar
- Available in modern finishes
- Also available as Ellis 36 and Ellis Wall
- Can be mounted vertically or horizontally
- Energy-efficient integrated LED, fully dimmable to create the desired ambiance
Lamping
LED includes 36 watt, 1995 delivered lumen, 90 CRI, 3000K LED module. Dimmable with most LED compatible ELV and TRIAC dimmers. Mounts vertically or horizontally. ADA compliant.
Ordering Information
| 700BCELI | Length (A) | Finish | Lamp | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700BCELI
Job Name
Notes
Ellis 36 Bath
Specifications
| Primary Material | Aluminum |
| Shade Material | Acrylic |
| Net Weight | 4 lbs |
| Height | 4.3in |
| Width | 4.2in |
| Length | 36in |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 1995 | |||
| Watts | 36 | |||
| Max Wattage Per Bulb | 36W | |||
| Input Voltage/ Dimming Type |
120V ELV, TRIAC 277V 0-10V |
|||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
