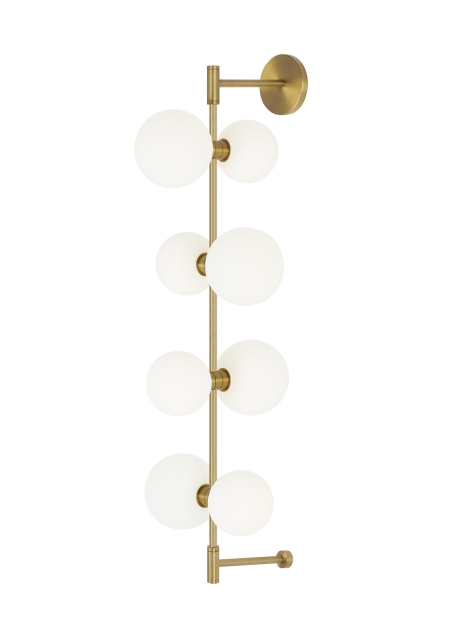

ModernRail Wall
Product Features
- From the brand formerly known as Tech Lighting
- Elegant ModernRail style in a convenient wall sconce size
- Classic Aged Brass finish adds charm and style
- Customizable using frosted opal glass globes or cylinders
- Ideal for both residential and commercial application
- Fully dimmable integrated LED light source
Lamping
Ships with 24 volt, 44.6 total watts,1405 total delivered lumens, 3000K, integrated LED modules. Dimmable with most LED compatible ELV and TRIAC dimmers. Remote Power Supply version T24.
To view all available finish options, please visit techlighting.com
Ordering Information
| 700MDWS3 | Color | Finish | Lamp | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700MDWS3
Job Name
Notes
ModernRail Wall
Specifications
| Primary Material | Metal |
| Shade Material | Glass |
| Net Weight | 6.5 lbs |
| Height | 36in |
| Width | 8.8in |
| Length | 8.9in |
| Min. Extension From Wall | 8.8in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Up / Down | |
| Horizontal / Vertical | |
| Wall / Ceiling Mount | |
| General Listing | ETL Listed |
| Ada Compliant | |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens |
Glass Cylinders : 1405.0 Glass Orbs : 1264 |
|||
| Watts | 44.6 | |||
| Max Wattage Per Bulb | 44.6W | |||
| Input Voltage/ Dimming Type | 120V ELV, TRIAC | |||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
