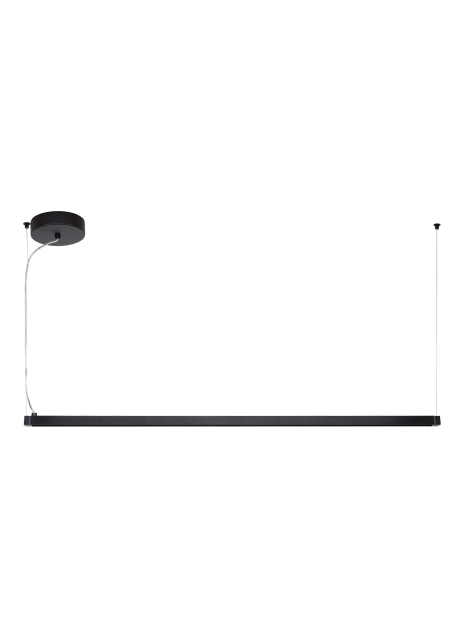

Dyna Linear Suspension
Product Features
- From the brand formerly known as Tech Lighting
- Ultra-thin, ultra-modern architectural style
- Easily extends with available mechanical connector to join multiple units together for larger spaces
- Fully dimmable integrated LED lamp with a Prismatic Lens
- Ideal for conference rooms, office spaces and other commercial spaces
Lamping
4ft version ships with 32 watt, 1306 delivered lumen, 90 CRI, 2700K, 3000K or 3500K LED linear modules. 8ft ships with 50.4 watt, 2612 delivered lumen, 90 CRI, 2700K, 3000K or 3500K LED linear modules. Dimmable with most LED compatible ELV or Triac dimmers. Ships with twelve feet field cuttable cable. Direct light.
To view all available finish options, please visit techlighting.com
Ordering Information
| 700LSDYNA | Shape or Size | Length (A) | Color | Finish | Lamp | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
700LSDYNA
Job Name
Notes
Dyna Linear Suspension
Specifications
| Primary Material | Acrylic |
| Shade Material | Acrylic |
| Net Weight | 5 lbs |
| Height | 1in |
| Width | 1.3in |
| Length | 93.5in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 6in |
| Max Hanging height | 144in |
| Total Cord Length | 144in |
| Total Stem Length | |
| Stem Qty | |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 2612.0 | |||
| Watts | 50.4 | |||
| Max Wattage Per Bulb | 50.4W | |||
| Input Voltage/ Dimming Type | 120V ELV, TRIAC | |||
| CCT |
Prismatic : 2700K Prismatic : 3500K |
|||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | No | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
