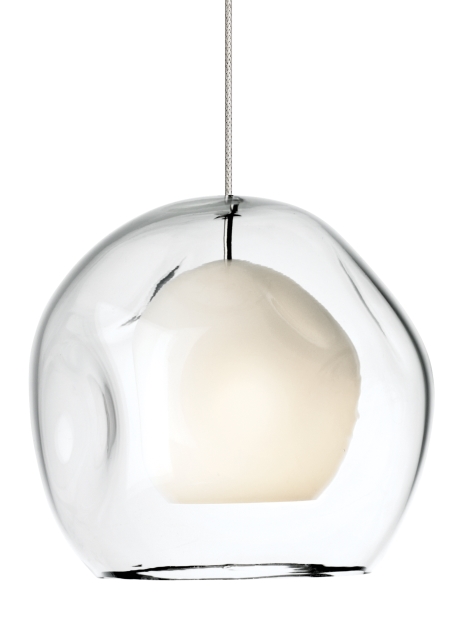

Mini Jasper Pendant

Product Features

  • Artisanally crafted by skilled glass blowing artisans
  • Available in modern finishes
  • As each piece is artisan made, slight variations are an inherent part of this hand-blown glass fixture
  • Moderately scaled makes this fixture ideal for a wide range of commercial and residential applications
  • Ideal for bedroom lighting, children’s room lighting and kitchen island task lighting
  • Monopoint version - The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. .98")

Lamping

Includes (1) 50 watt low-voltage GY6.35 base Xenon bi-pin lamp and 6 of field-cuttable suspension cable. For use with 24 volt transformer, add suffix "-24" to item number.

Clear
Clear

Ordering Information

700 System JAS Color Finish Lamp

FJ FREEJACK
MP MONOPOINT
MO MONORAIL
C Clear
S Satin Nickel
12 VOLT XENON (T20)

MP mount includes 4" Round Flush Canopy.

700
Job Name
Notes

JAS






logo
© 2019 Tech Lighting, L.L.C. All rights reserved. The “Tech Lighting” graphic is a registered trademark of Tech Lighting, L.L.C. Tech Lighting reserves the right to change specifications for product improvements without notification.

7400 Linder Avenue, Skokie, IL 60077

T 847.410.4400 | F 847.410.4500 | techlighting.com

Mini Jasper Pendant

Specifications

Primary Material Glass
Shade Material
Net Weight 5 lbs
Height 7.8in
Width 8.7in
Length 8.7in
Up light / Down Light / Both?
Wet Listed
Damp Listed
Dry Listed Yes
Min. Hanging Height 14.3in
Max Hanging height 80.3in
Sloped Ceiling Adaptable? Yes 45° Max
General Listing ETL Listed
Includes
Mini Jasper Pendant Line Art

Lamping Specifications

  Led Lamp Integrated LED Non Led No Lamp
Delivered Lumens 558
Watts 50
Max Wattage Per Bulb 50W
Input Voltage/ Dimming Type 12V ELV, MLV
120V ELV, MLV
CCT 3000K
CRI 100 CRI
LED Lifetime
L70
Average Bulb Hours 10000
Field Serviceable LED
Lamp Base GY 6.35
Lamp Shape T4
Lamp Included? True
Warranty** 1 Year

* Dimming information available at www.techlighting.com/Downloads#dimming

** Visit techlighting.com for specific warranty limitations and details.

T20 / T24 / JA8 Information

  Integrated LED Replacement LED Lamp No Lamp *
This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8.
This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California.

* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
