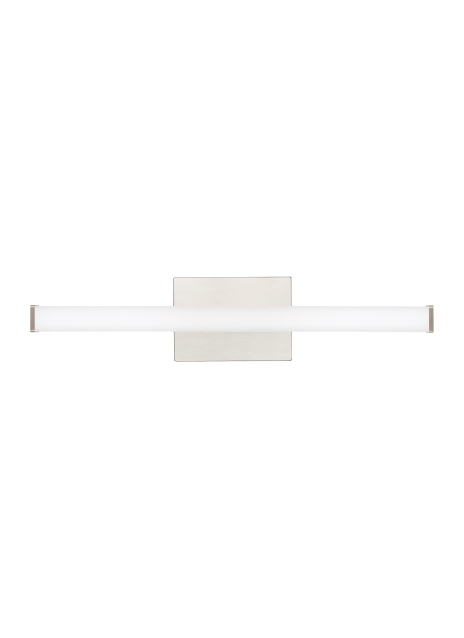

Lufe Square 24 Bath
Product Features
- From the brand formerly known as Tech Lighting
- Sleek, minimalist bath bar design with frosted acrylic diffuser and cleverly hidden hardware which ensures a clean look
- Available in modern finishes
- Damp rated for use in covered, damp areas like bathrooms
- Protected by a 5-year warranty; please go to www.lbllighting.com for warranty details
Lamping
LED includes 23.9 watt 2098 delivered lumens 90 CRI 3000K or 3500K LED module. Dimmable with a low-voltage electronic dimmer. 277V dimmable with 0-10V dimmer. Mounts vertically or horizontally. ADA compliant. 120v or 277v.
Ordering Information
| 700BCLUF | Shape or Size | Length (A) | Finish | Lamp | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
700BCLUF
Job Name
Notes
Lufe Square 24 Bath
Specifications
| Primary Material | Metal |
| Shade Material | Acrylic |
| Net Weight | 2 lbs |
| Height | 5in |
| Width | 3.2in |
| Length | 24in |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 2090 | |||
| Watts | 23.9 | |||
| Max Wattage Per Bulb | 23.9W | |||
| Input Voltage/ Dimming Type |
120V ELV, TRIAC 277V 0-10V |
|||
| CCT |
3000K 3500K |
|||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
