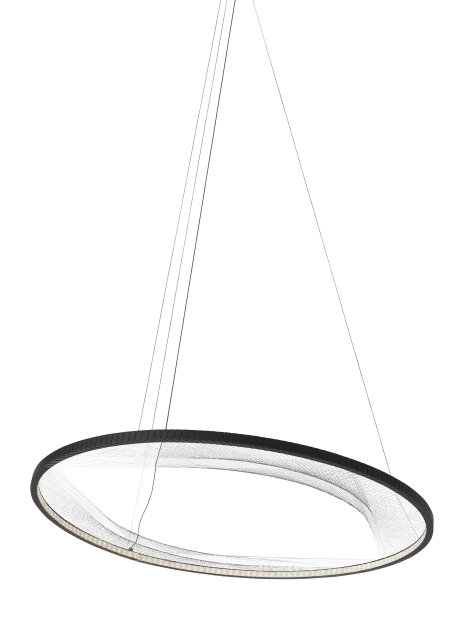

Interlace 45 Suspension
Product Features
- From the brand formerly known as Tech Lighting
- Hundreds of hand-strung strands of stainless steel cable create an intricate, interwoven pattern
- Integrated LEDs shine inward from the 45" diameter ring, the reflecting off of interwoven cables
- Includes 12 feet of field-cuttable aircraft cable to match finish selection
- At 45" diameter, the Interlace is great on its own or hung in multiples in your foyer, dining room and living room
Lamping
Includes 67.6 watt 2660 delivered lumens, 2700K, 80 CRI LED module. Dimmable with most LED compatible ELV and TRIAC dimmers. 277V dimmable with ELV. Includes 12 feet of field-cuttable aircraft cable to match finish selection.
Ordering Information
| 700INT45 | Finish | Lamp | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
700INT45
Job Name
Notes
Interlace 45 Suspension
Specifications
| Primary Material | Aluminum |
| Shade Material | |
| Net Weight | 12 lbs |
| Height | 1.1in |
| Width | 45in |
| Length | 45in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 23in |
| Max Hanging height | 133.3in |
| Total Cord Length | 144in |
| Total Stem Length | |
| Stem Qty | |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 2660 | |||
| Watts | 67.6 | |||
| Max Wattage Per Bulb | 67.6W | |||
| Input Voltage/ Dimming Type |
120V ELV, TRIAC 277V ELV |
|||
| CCT | 2700K | |||
| CRI | 80 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | No | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
