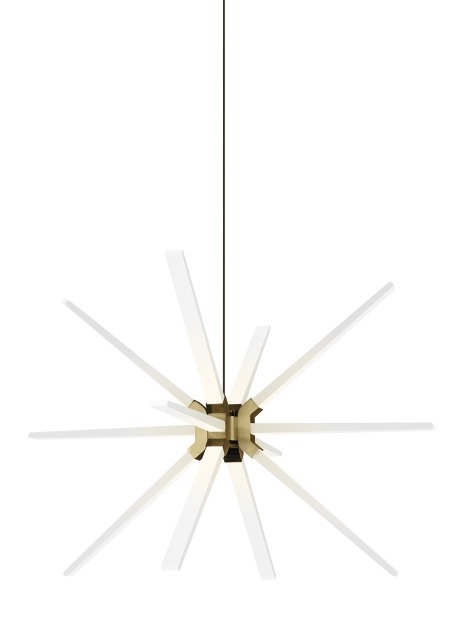

Photon 34 Chandelier
Product Features
- From the brand formerly known as Tech Lighting
- Playful starburst design can be installed in multiples at varying heights for a dramatic art installation
- Fully dimmable with most ELV dimmers to create just the right atmosphere
- Solid acrylic arms with aluminum core construction for beauty and durability
- Protected by a 5-year warranty. please go to www.techlighting.com for warranty details
Lamping
LED includes (12) 2 watt, 23.5 total watts, 1897 total delivered lumens 90 CRI 3000K LED modules. Dimmable with most LED compatible ELV and TRIAC dimmers. 277V compatible with 0-10V dimmers. Includes 10 feet of field-cuttable cable. Aged Brass supplied with bronze cord. Satin Nickel supplied with clear cord.
Ordering Information
| 700PHT34 | Finish | Lamp | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
700PHT34
Job Name
Notes
Photon 34 Chandelier
Specifications
| Primary Material | Aluminum |
| Shade Material | Acrylic |
| Net Weight | 9.5 lbs |
| Height | 23.5in |
| Width | 34in |
| Length | 34in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 43.1in |
| Max Hanging height | 135.1in |
| Total Cord Length | 120in |
| Total Stem Length | |
| Stem Qty | |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 1897 | |||
| Watts | 23.5 | |||
| Max Wattage Per Bulb | 23.5W | |||
| Input Voltage/ Dimming Type | 277V 0-10V | |||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | No | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
