Clear Lens

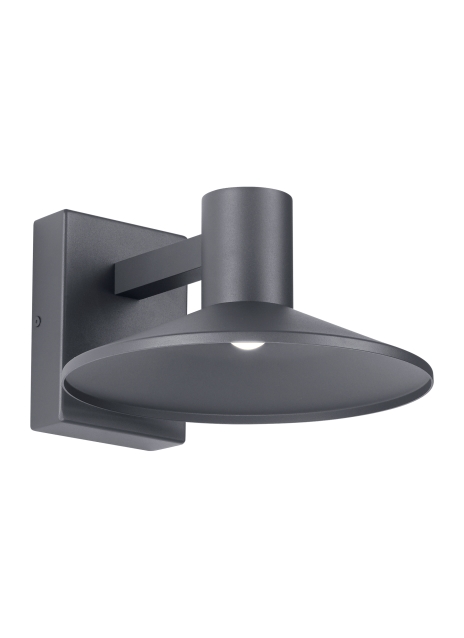

Ash 10 Outdoor Wall
Product Features
- From the brand formerly known as Tech Lighting
- Powerful, long lasting (L70, 70,000 hours) dimmable LED tested against the highest quality standards to ensure it delivers consistent LED performance and color over time.
- Die-cast aluminum structure, powder coat finish, and stainless steel hardware for robust durability in harsh elements.
- Universal 120-277 volt driver with integral transient surge protection at 2.5KV per American National Standard (ANSI) and IEEE standards.
- Wet listed, IP65 (International Protection rating indicating resistance to dust and water. Suitable and safe for commercial use)
- Available high or low output with a choice of 2700K or 3000K color temperatures. Available in modern finishes
Lamping
Clear Lens
Clear Lens
Clear Cylinder
Clear Lens
Clear Cylinder
Ordering Information
| 700OWASH | CRI | Length (A) | Finish | Voltage | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
700OWASH
Job Name
Notes
Ash 10 Outdoor Wall
Specifications
| Primary Material | Aluminum |
| Shade Material | Aluminum |
| Net Weight | 3.5 lbs |
| Height | 9.6in |
| Width | 12.5in |
| Length | 10.5in |
| Wet Listed | Yes |
| Damp Listed | |
| Dry Listed | |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens |
1172 733 587 381 |
|||
| Watts |
18 8.1 |
|||
| Max Wattage Per Bulb | 18W | |||
| Input Voltage/ Dimming Type | Universal 120V-277V 0-10, ELV | |||
| CCT |
2700K 3000K |
|||
| CRI |
90 CRI 2700K High Output 90 CRI 3000K High Output 90 CRI 2700K Low Output 90 CRI 3000K Low Output |
|||
| LED Lifetime | ||||
| L70 | >60000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
