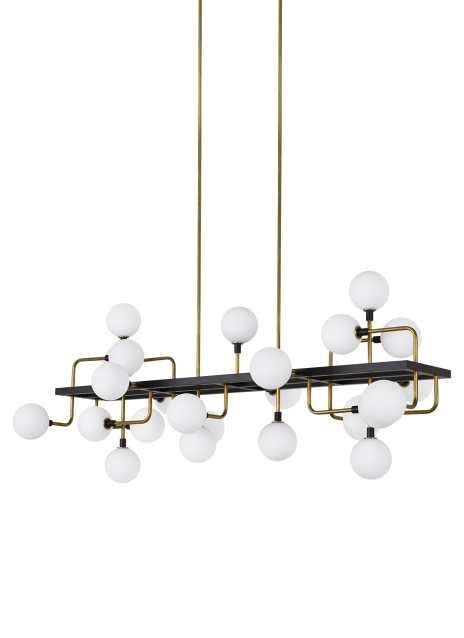

Viaggio Linear Chandelier
Product Features
- From the brand formerly known as Tech Lighting
- Artistic sense of celestial travel
- Clustered mid-century modern design style
- Complementary Viaggio chandelier, flush mount and wall sconce fixtures also available by Tech Lighting
- Ideal for dining room, living room and bedroom lighting applications
Lamping
Available with or without lamp. Brass & Black w/ Opal glass rated for (25) 5 watt max. G9 Pin lamps. LED version ships with (25) 120 volt 5 watt, 303 delivered lumens (9019 total delivered lumens), 3000K, 90 CRI LED G9 Bi-Pin lamps. Polished Nickel & Black w/Mirrored Smoke glass rated for (25) 5 watt max. candelabra base E12 lamps. LED version ships with (25) 120 volt 2 watt, 114 delivered lumen (3750 total delivered lumens), 2700K, 90 CRI candelabra base LED E12 lamps. Dimmable with LED compatible or triac dimmer. All versions include (6) 6" and (10) 12" rigid stems in coordinating finish. Can be installed on a sloped ceiling up to 45°.
Ordering Information
| 700LSVGO | Color | Lamp | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
Opal/Brass version only available with LED930.
Mirrored Smoke/Polished Nickel version only available with LED927.
700LSVGO
Job Name
Notes
Viaggio Linear Chandelier
Specifications
| Primary Material | Metal |
| Shade Material | Glass |
| Net Weight | 38 lbs |
| Height | 25in |
| Width | 26in |
| Length | 56in |
| Up light / Down Light / Both? | |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| Min. Hanging Height | 32.2in |
| Max Hanging height | 92.2in |
| Total Cord Length | |
| Total Stem Length | Up to 120in |
| Stem Qty | 12 |
| Sloped Ceiling Adaptable? | Yes 45° Max |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens |
Opal/Brass : 9019.0 Smoke/Polished Nickel : 3750.0 |
|||
| Watts |
Opal/Brass : 5W Smoke/Polished Nickel : 2W |
|||
| Max Wattage Per Bulb | 25W | 25W | ||
| Input Voltage/ Dimming Type | 120V ELV, TRIAC | 120V ELV, TRIAC | ||
| CCT |
Opal/Brass : 3000K Smoke/Polished Nickel : 2700K |
|||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >25000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base |
Opal/Brass : G9 Smoke/Polished Nickel : E12 Candelabra Base |
Opal/Brass : G9 Smoke/Polished Nickel : E12 Candelabra Base |
||
| Lamp Shape |
Opal/Brass : T4 Smoke/Polished Nickel : T6 |
Opal/Brass : T4 Smoke/Polished Nickel : T6 |
||
| Lamp Included? | True | False | ||
| Warranty** | 1 Year | 1 Year |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | N/A | |
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | Yes | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
