Standard

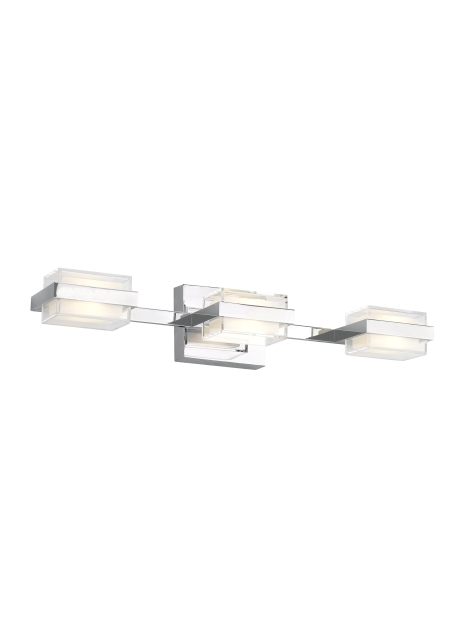

Kamden 3-Light Bath
Product Features
- From the brand formerly known as Tech Lighting
- Two ultra-clean pressed-glass square shades provide ample amount of light
- Die-cast metal frame with hand-polished glass
- Fully dimmable integrated LED lamp
- Complementary Kamden Wall sconce also available by Tech Lighting
- The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. 1")
Lamping
3-Light Shallow includes 120 volt, 25 watt, 1696 delivered lumens, 3000K LED module. 3-Light Standard includes 120 volt, 35 watt, 1780 delivered lumens, 3000K LED module. Dimmable with most LED compatible ELV or Triac dimmers. 277V compatible with 0-10V dimmers.
Standard
Standard
Standard
Shallow
Shallow
To view all available finish options, please visit techlighting.com
Ordering Information
| 700BCKMD | Shape or Size | Finish | Lamp | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700BCKMD
Job Name
Notes
Kamden 3-Light Bath
Specifications
| Primary Material | Aluminum or Brass |
| Shade Material | Acrylic |
| Net Weight | 3.5 lbs |
| Height | 4.3in |
| Width | 4.7in |
| Length | 22.5in |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 1696.0 | |||
| Watts | 25 | |||
| Max Wattage Per Bulb | 25W | |||
| Input Voltage/ Dimming Type |
120V ELV, TRIAC 277V 0-10V |
|||
| CCT | 3000K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
