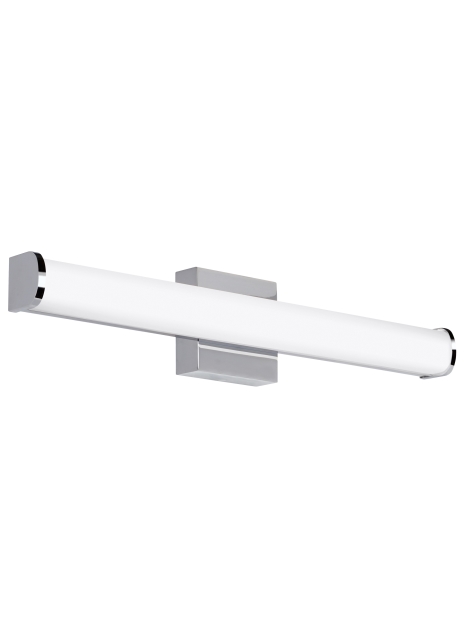

Basis 24 Bath
Product Features
- From the brand formerly known as Tech Lighting
- Premium quality construction and light output with your choice of on-trend finishes
- Mounts horizontally or vertically for added versatility
- Available in multiple length options as well as modern finish options
- Fully dimmable LED lamping options to create the desired ambiance
- High quality, long-lasting integrated LED lamping included to save you time and money
Lamping
Includes 22 watt, 1322 delivered lumen, 2700K LED module. Mounts horizontally or vertically. ADA compliant. Dimmable with low-voltage electronic dimmer. 120V or 277V
Ordering Information
| 700BCBAS | Length (A) | Finish | Lamp | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700BCBAS
Job Name
Notes
Basis 24 Bath
Specifications
| Primary Material | Glass |
| Shade Material | Glass |
| Net Weight | 2.5 lbs |
| Height | 4.3in |
| Width | 3.4in |
| Length | 24.2in |
| Wet Listed | |
| Damp Listed | Yes |
| Dry Listed | |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 1322 | |||
| Watts | 22 | |||
| Max Wattage Per Bulb | 22W | |||
| Input Voltage/ Dimming Type |
120V ELV, TRIAC 277V 0-10V |
|||
| CCT | 2700K | |||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >50000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | No | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
