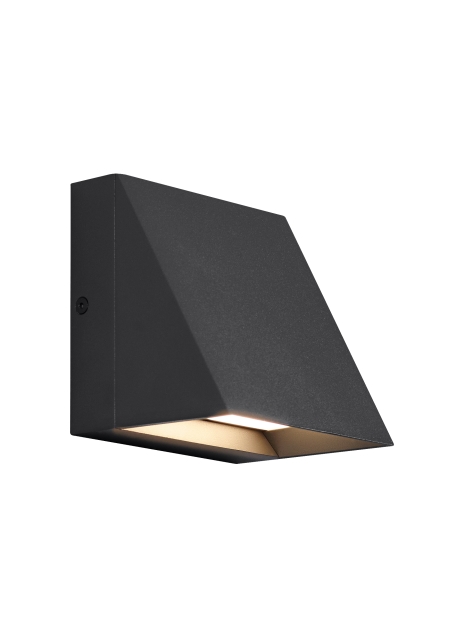

Pitch Single Outdoor Wall
Product Features
- From the brand formerly known as Tech Lighting
- Powerful, long lasting (L70, 70,000 hours) dimmable LED tested against the highest quality standards to ensure it delivers consistent LED performance and color over time.
- Die-cast aluminum structure, powder coat finish, and stainless steel hardware for robust durability in harsh elements. appropriate for commercial use.
- Mount vertically for downlight only.
- Wet listed, IP65 (International Protection rating indicating resistance to dust and water. Suitable for wet location when facing down).
- The LED Driver is housed within the junction box for this product
Lamping
Ordering Information
| 700WSPIT | Shape or Size | Finish | Lamp | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
700WSPIT
Job Name
Notes
Pitch Single Outdoor Wall
Specifications
| Primary Material | Aluminum |
| Shade Material | Aluminum |
| Net Weight | 1.2 lbs |
| Height | 5in |
| Width | 3.9in |
| Length | 5in |
| Wet Listed | Yes |
| Damp Listed | |
| Dry Listed | |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 590 | |||
| Watts | 15.9 | |||
| Max Wattage Per Bulb | ||||
| Input Voltage/ Dimming Type |
120V ELV 277V ELV |
|||
| CCT |
3000K 2700K |
|||
| CRI | 90 CRI | |||
| LED Lifetime | ||||
| L70 | >60,000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
