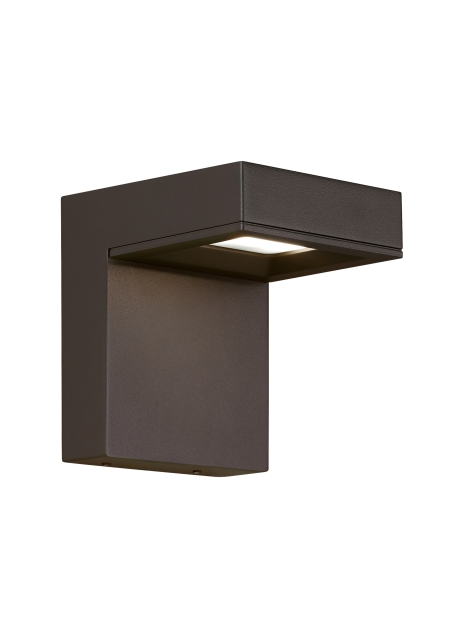

Taag 6 Outdoor Wall
Product Features
- From the brand formerly known as Tech Lighting
- Powerful, long lasting (L70, 70,000 hours) dimmable LED tested against the highest quality standards to ensure it delivers consistent LED performance and color over time.
- Die-cast aluminum structure, powder coat finish, and stainless steel hardware for robust durability in harsh elements. appropriate for commercial use.
- Universal 120-277 volt driver with integral transient surge protection at 2.5KV per American National Standard (ANSI) and IEEE standards
- Wet listed, IP65 (International Protection rating indicating resistance to dust and water. suitable and safe for commercial use).
- Available in modern finishes
Lamping
Ordering Information
| 700OWTAG | CRI | Color Temp | Length (A) | Finish | Voltage | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
700OWTAG
Job Name
Notes
Taag 6 Outdoor Wall
Specifications
| Primary Material | Aluminum |
| Shade Material | Aluminum |
| Net Weight | 4 lbs |
| Height | 5.9in |
| Width | 5.7in |
| Length | 5in |
| Wet Listed | Yes |
| Damp Listed | |
| Dry Listed | |
| General Listing | ETL Listed |
| Includes |
Lamping Specifications
| Led Lamp | Integrated LED | Non Led | No Lamp | |
|---|---|---|---|---|
| Delivered Lumens | 625 | |||
| Watts | 10.3 | |||
| Max Wattage Per Bulb | 10.3W | |||
| Input Voltage/ Dimming Type | Universal 120V-277V 0-10, ELV, TRIAC | |||
| CCT |
3000K 4000K |
|||
| CRI | 80 CRI | |||
| LED Lifetime | ||||
| L70 | >60000 | |||
| Average Bulb Hours | ||||
| Field Serviceable LED | ||||
| Lamp Base | Integrated LED | |||
| Lamp Shape | Integrated LED | |||
| Lamp Included? | True | |||
| Warranty** | 5 Years |
* Dimming information available at www.techlighting.com/Downloads#dimming
** Visit techlighting.com for specific warranty limitations and details.
T20 / T24 / JA8 Information
| Integrated LED | Replacement LED Lamp | No Lamp * | |
| This product can be used to comply with California Building Energy Efficiency Standards 2016 Title 24 Part 6 / JA8. | Yes | ||
| This product can be used to comply with California Appliance Efficiency Standards 2016 Title 20 and may be shipped to and sold in California. | N/A |
* If a light fixture or component does not include a lamp or light source, it is the responsibility of the customer to select a lamp that meets the T24 and T20 requirements.
